IDH400QR-G Frost Fighter LP NG Indirect Recirculating Heater

Frost Fighter IDH Indirect LP/NG Recirculating Dual Fuel Propane Natural Gas Fired Heater 395,000 Btu 110-120V 15 Amp.

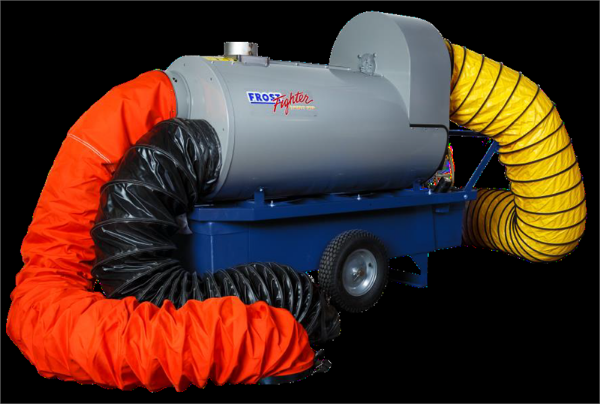

(IDH400QR-G Pictured with Optional Duct Hoses)

IDH400QR LP/NG is the most efficient, durable, and reliable Indirect heater in this popular class and boasts one of the quietest operating dB noise levels available.

Combined with standard recirculation, a fully insulated jacket, High Static Pressure, adaptable duct attachment, stainless steel multi-pass heat exchanger, 3-trials for ignition, and EZ Ball Valve switchover features, the IDHQR Series is designed to provide excellent fuel savings and trouble-free operation in the harshest environments.

Features:

Proven reliable commercial-grade burner

Over 81% efficiency

Fully Insulated Jacket to minimize heat loss, increase efficiency, and provide excellent to the touch for safety

Proven "Multi-Pass" Stainless Steel Heat Exchanger provides unsurpassed heat transfer

Fully independent fan combustion air offers consistent and dependable operation in cold weather and ensures pre-heating to eliminate cold air delivery at start-up

High static pressure/high volume fan provides large volumes of air movement with or without ducting attached

Available with Dual 12" or Single 16" Outlet that can accommodate up to 100ft. of supply duct

16" Intake that can accommodate up to 50ft. of return duct to significantly reduce fuel consumption and heating times (length of intake duct attached requires equal reduction from 100ft. of supply duct. @ 25ft intake = 75ft supply)

Compact design with highly durable 6-Ply Pneumatic tires handles lifting bail for easy transport

Quiet operation of 62dB for noise-sensitive areas

Durable powder coat finish

High-efficiency stainless steel heat exchanger

Ball Valve Switchover from Propane to Natural Gas

ETL Approved

Optional remote thermostat available

TECHNICAL SPECIFICATIONS

Specifications                                                 IDH400QR

Maximum Heating Capacity                     340,000 BTU/h

Heated Air Volume                                        2,800 CFM

Maximum Static Pressure                         2.8"

Running Sound Level                                   62dB

Discharge Temperature                              up to 290°F (143°C)

Insulated Jacket                                              Yes

Outlet Configuration                                     Dual 12" or Single 16"

Inlet Diameter                                                 16"

Maximum Total Duct Length                     Up to 100ft per Outlet

Supply Gas Pressure (LP/NG)                   1/2lb PSI max. or 7"-14" w.c.

Power Requirement                                      120V - 15amp

Running Amps                                                 9.2

Crated Dimensions                                       83"L x 37"W x 52"H

Approximate Crated Weight                     580lbs

Approvals / Certification                            CSA

Specifications are subject to change without prior notice.

Download the IDH400QR-G Manual
