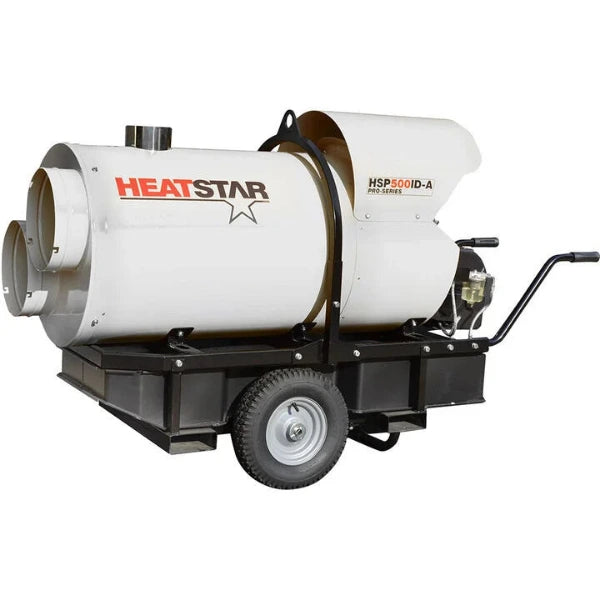

HSP500ID-A HeatStar 500,000 BTU Indirect Diesel Fired Heater F105125

The HeatStar Heavy Duty PRO SERIES HSP500ID-A 400,000 Btu, (With Kit) 500,000 BTU Indirect Oil Diesel Is Ideal Heating Solution For Construction, Industrial.

This HSP500 A unit ships with factory-installed dual 12" duct adapters.

You can place the unit outside the space and duct the warm air in, or, for fuel savings, you can set the heater in the space to be heated and vent the exhaust out.

Either way, it is hard to beat the comfort and safety of indirect heat.

Heated fuel filter Standard Comes Standard with Dual 12" Duct Hose Adapter Attached.

Heavy-duty frame.

Lift bracket.

A heat exchanger to keep the exhaust gas and heated air separate.

46-gallon tank capacity. Optional F105199 100 Gal Tank.

Powerful fans ensure high static pressure.

Long-life stainless steel combustion chamber.

Electronic flame control

Water-resistant flame control box

Automatic safety and control devices

An optional thermostat is available for constant temperature control

Durable powder-coated finish

Heavy-duty duct adapter available

UL Certified

     Product details

• The HSP500ID-A F105125
• BTU per Hour 400.000 (500,000 with kit)
• Fuel Type Kerosene, Diesel 1# or 2#, Fuel Oil, Jet A fuel
• Tank Capacity (Gal) 46 Optional F105199 100 Gal Tank

• Ignition Continuous
• Electrical Rating 120v, 60 HZ, 13 Amp
• Air Volume (CFM) 4032
• Heated Fuel Filter Standard
• Heated Nozzle No
• Clearance to Combustibles 6 ft
• Recirculating Ducting Optional: F105127 Adapter Ring / 24in x 25ft Duct and Clamp
• Duct Length Max 100 ft
• Duct Diameter Standard Dual (12in) or Single F105126 (16in)
• Multiple Ducting Optional F150040 12in x 25ft / F150050 16in x 25ft
• Wheel Type Pneumatic
• Thermostat Optional F105108 Analog (Cord 32') F105106 Digital (Cord 16')
• Item Length (in) 83
• Item Width (in) 29
• Item Height (in) 49
• Item Weight (lb..) 484

Warranty 1 Year Limited

Certification UL

Model HSP500ID-A F105125

Heatstar Construction Heaters Brochure

Indirect Oil-Fired Forced Air 500k BTU Industrial Heater Schematic

This item can only be shipped via LTL Freight due to its weight, size, or fragility.

HSP500ID-A F105125 Ships - Factory Direct
