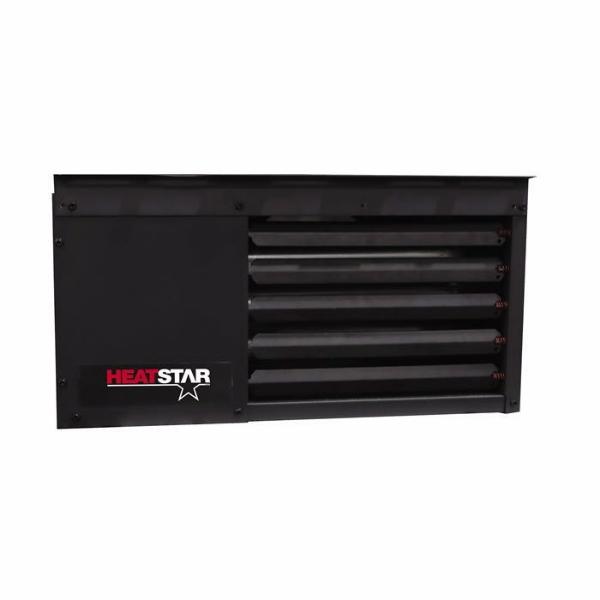

HSU 80NG HeatStar Forced Air Unit Heater 80,000 Btu Heater

HeatStar By Enerco Overhead 80,000 Btu Forced Air Garage Shop Natural Gas Fired Heater With Natural Gas To Propane Kit

This 80,000 BTU Natural Gas Unit heater is the way to go.
It uses a built-in electric high velocity fan to pull cool air into the rear of the heater, across a heat exchanger, then forcing warm air into the surrounding areas.
These heaters only require 115v AC power and can be vented vertically or horizontally - please check local codes and restrictions.
With a mounting clearance of only 1 inch, the supplied brackets, external access to power, and thermostat connections - installation is a cinch.
With the Durable Spark ignition and robust factory standard self-diagnostic control module,
 we can offer a 3-year factory warranty on all parts and burners and a 10-year warranty on any defects in the heat exchanger.
This heater offers the operating versatility and safety that you have come to expect from Heatstar.

• 80,000 BTU per hour
• For use with natural gas
• Heats up to 2000 sq. ft
• Spark ignition features self-diagnostic control module
• Includes 2 angle brackets for ceiling mount
• Low Profile Design - Can be installed in low-ceiling buildings
• Minimum 8ft clearance from floor to base of heater required
• 1/2in gas connection
• Category 1 vertical, category 3 horizontal venting
• Natural Gas to Liquid Propane conversion kit included

PRODUCT DETAILS

• Weight (Lbs.)     78.85
• BTU per Hour     80,000
• Heating Area (Sq. Ft)       2,000
• Electrical Rating 110 vac
• Air Volume (CFM)
• Gas Inlet Connection      1/2in
• Gas Inlet Pressure Min   3.5in WC
• Gas Inlet Pressure Max  14in WC
• Mounting Height Range 8ft - 10ft
• Clearance to Combustibles: Horizontal    Above 1in; Behind 18in; Sides 1in
• Venting: Length Min/Max            5ft - 25ft
• Venting: Exhaust              4in Diameter
• Venting: Air Intake
• Venting Direction             Horizontal or Vertical
• Heat Exchanger Aluminized Steel Tubing
• Thermostat Optional      Yes
• Fuel Type            Natural Gas or Propane
• Ignition Electronic
• Carton Length (in)            22
• Carton Width (in)             30.25

This item can only be shipped via LTL Freight due to its weight, size, or fragility.

Ships from Bedford Hts, Ohio Warehouse

Download 2020 Installation Owner’s Manual and Warranty Information
