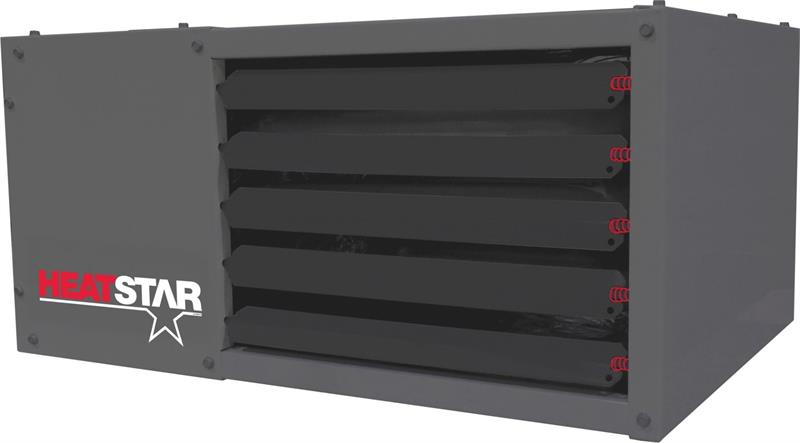

HSU125NG HeatStar Gas Forced Air Unit Heater 120,000 Btu

HeatStar By Enerco 125,000 Btu Overhead Forced Air Heater Natural Gas With Conversion to Propane Kit

This 125,000 BTU Natural Gas Unit heater is the way to go.
It uses a built-in electric high velocity fan to pull cool air into the rear of the heater, across a heat exchanger, then forcing warm air into the surrounding areas.
These heaters only require 115v AC power and can be vented vertically or horizontally - please check local codes and restrictions.
With a mounting clearance of only 1 inch, the supplied brackets, external access to power, and thermostat connections - installation is a cinch.
With the Durable Spark ignition and robust factory standard self-diagnostic control module, we can offer a 3 year factory warranty on all parts and burners and a 10 year warranty on any defects in the heat exchanger.
This heater offers the operating versatility and safety that you have come to expect from Heatstar.

• 125,000 BTU per hour
• For use with natural gas
• Heats up to 3,125 sq. ft.
• Spark ignition features self-diagnostic control module
• Includes 2 angle brackets for ceiling mount
• Low Profile Design - Can be installed in low-ceiling buildings
• Minimum 8ft clearance from floor to base of heater required
• 1/2in gas connection
• Category 1 vertical, category 3 horizontal venting
• LP conversion Kit included

PRODUCT DETAILS

• Weight (Lbs.)     120

• BTU per Hour     125,000
• Heating Area (Sq. Ft)       2,000
• Electrical Rating 110 vac
• Air Volume (CFM)
• Gas Inlet Connection      1/2in
• Gas Inlet Pressure Min   3.5in WC
• Gas Inlet Pressure Max  14in WC
• Mounting Height Range 8ft - 10ft
• Clearance to Combustibles: Horizontal    Above 1in; Behind 18in; Sides 1in
• Venting: Length Min/Max            5ft - 25ft
• Venting: Exhaust              4in Diameter
• Venting: Air Intake
• Venting Direction             Horizontal or Vertical
• Heat Exchanger Aluminized Steel Tubing
• Thermostat Optional      Yes
• Fuel Type            Natural Gas or Propane
• Ignition Electronic
• Carton Length (in)            31.75

• Carton Width (in)             30
• Carton Height (in)            30.5

• Carton Weight (lb.)           121


This item can only be shipped via LTL Freight due to its weight, size, or fragility.

Ships from Bedford Hts, Ohio Warehouse

California Residents Click here for detailed information on Prop 65

2020 Installation, Owner’s Manual and Warranty Information

2020 Indirect Fired 50-125k BTU Unit Heater Schematic
