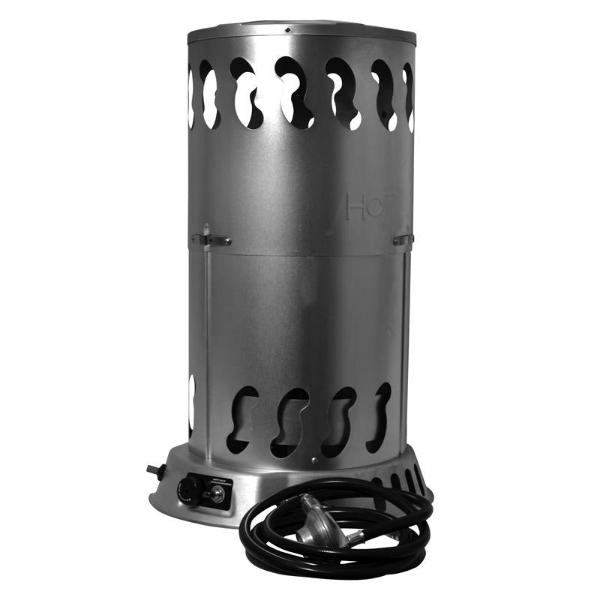

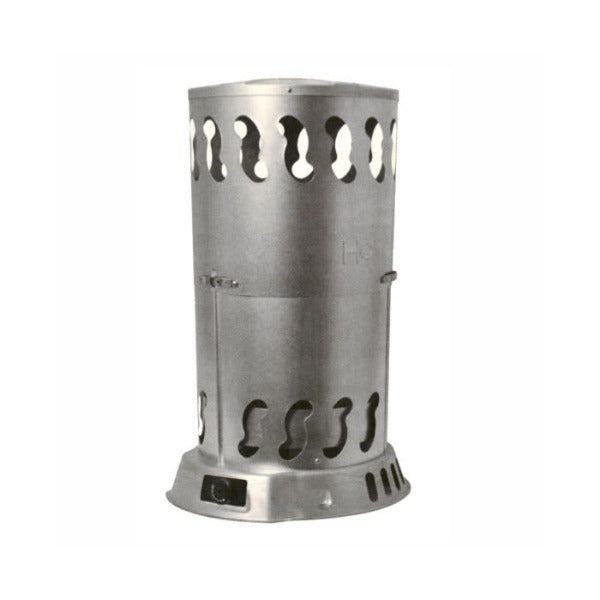

HS100CVNG HeatStar 100,000 Btu Convection Natural Gas Heater

Heatstar By Enerco 50,000-100,000 Utilizes The Natural Act Of Warm Air Rising To Heat 2,500 Square Feet Quickly

F170473 HS100CVNG is equipped with a therm o electric safety valve to shut the gas flow off if the flame ever goes out. With the HS100CVNG, you can utilize the factory-installed Piezo igniter and enjoy the comforts of a toasty, warm job site.

SPECIFICATIONS

MODEL NO..................................100CVNG F170143

GAS TYPE....................................Natural gas

BTU RATING.................................100,000 Btu/hr. (17.7 kW)

Type of Gas:................................For use with Natural Gas Only

Gas Supply Pressure to Regulator:

Maximum:...................................1/2 psig (3.4 kPa)

Minimum:....................................9" W.C. (2.3 kPa)

regulator out...............................4" W.C. (0.98 kPa)

Ignition:.......................................Piezo Ignitor

Minimum Ambient Temp. Rating................0°F(-17.8°C)

Fuel Consumption:.......................55.5 cu-ft/hr. (1.6cu-m/hr.)

Fuel Orifice Port No.:...................6

Fuel Orifice Port Size:...................0.0520" (1.30mm)
