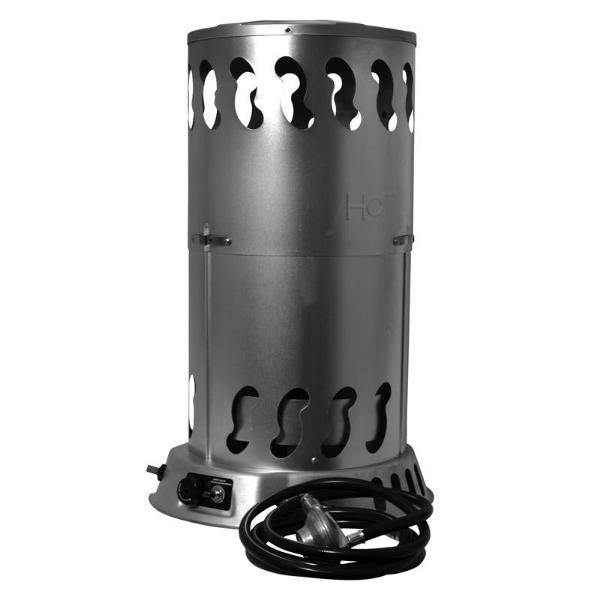

HS200CVX HeatStar Convection LP 200,000 Btu Heater F170475

The HeatStar HS200CVX Convection 200,000 Btu Propane Contractor Heater Utilizes The Natural Act Of Warm Air Rising To Heat 4,700 Square Feet Quickly.

HS200CVX F170475 has a thermometric safety valve to shut the gas flow off if the flame ever goes out. Just hook up the supplied 10ft propane hose and regulator assembly to a 100lb propane tank, then easily light the heater utilizing the factory-installed Piezo igniter and enjoy the comforts of a toasty warm job site with this.

HS200CVX F170475 Heat Rating: Variable 75,000 to 200,000 BTU/HR.
Heats approximately 4,700 sq. feet
Runs up to 29 hours on 100-lb. LPG Tank (low setting)
Propane Consumption 3.5 – 9.3 Hr
Standing pilot for increased safety
Piezo push button ignitor
Electrical Requirements: None
Thermocouple operated gas valve for safety.
Automatically shuts off when flame is lost.
Solid base prevents tip-over.
Telescoping chamber for reduced ship cube/retail space
"Insta-lock" chamber for easy assembly
20' hose and 10 psi regulator included
Provides 360 degrees of directional heat.
Item Length: 16"
Item Width: 19"
Item Height: 22"
Item Weight: 22"

SPECIFICATIONS
Type of Gas: ...... For use with Propane Only
Gas Supply Pressure to regulator ...... Max.: Bottle Pressure Min.: 200CV= 15 psig (103 kPa)
regulator out .... 80CV..............................200CV
= 11" W.C. (2.74 kPa) = 10 psig (68.9 kPa)
Ignition: ............ Piezo Ignitor
Minimum
Ambient
Temp. Rating ..... 0°F (-17.8°C)
Model: 200CV
Rating: 75,000-200,000 Btu/hr (22.0 - 58.6 kW)
Fuel Consumption: 3.5 - 9.3 #/hr (1.44 - 4.32 kg/hr)
Fuel Orifice
Port No.: 6
Fuel Orifice
Port Size: 0.0320" (.813mm)
CSA certified.
1 year warranty
