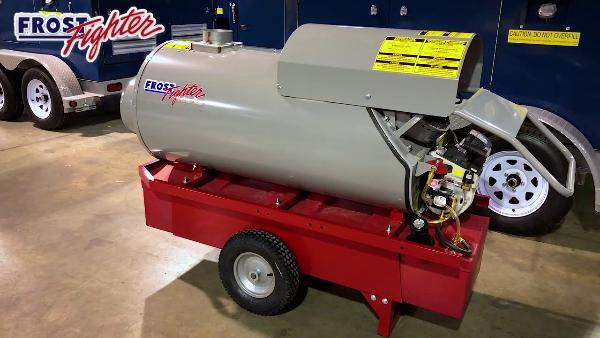

• IDF500-Oil Frost Fighter Indirect Fired Heater 500,000 Btu

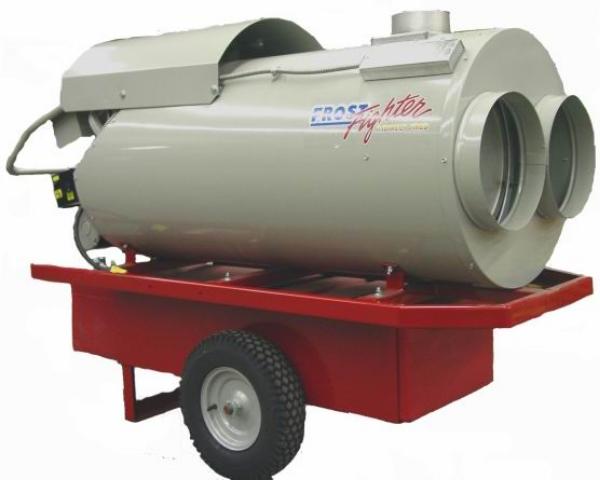

  • IDF350/500-Oil Right Side View
1 3

Frost Fighter Heating

IDF500-Oil Frost Fighter Indirect Diesel Fired Heater 500K

IDF500-Oil-2x12

$6,240.00
$6,240.00
Shipping calculated at checkout.
Specifications

Frost Fighter IDF Indirect Oil/Diesel Fired Portable Heater 500,000 Btu 110V 120V 15 Amp Heating Unit

IDF500 Oil Fully Insulated Jacket, Industrial Grade Beckett Burner Oil/Diesel, Stainless Steel Heat Exchanger, Satin Coated Steel, Powder Coated Paint, LED Polarity Lighting, High Limit Safety Switch, 6-Ply Pneumatic wheels, Adaptable Duct Connection, 3-Trials for Ignition. Features:

  • Standard Lifting Bail Included
  • Industrial Grade Beckett Burner (Oil/Diesel Version)
  • Can be configured with 2 x 12" or 1 x 16" Outlet front Cap
  • Optional Environmental Spill Containment 42 Gal Fuel Tank (Oil/Diesel Version)
  • Optional Heat Recovery System Available to Minimize Service Calls (Oil/Diesel Version)
  • GeniSys Controller with Diagnostic Reader (Oil/Diesel Version)
  • Clean burning flame retention burner
  • Vented burning for safe use in confined areas.
  • Independent fan and combustion air feeds ensure quick winter starts.
  • No heated air led off for combustion or lost up the flue.
Models:
IDF500 Indirect Oil Fired Heater Input 500,000 BTU
Fuel Oil, Diesel, JP8, Kerosene Fuel
Output Capacity: 420,000 BTU s
Heated Air (w/o duct) 3,100 CFM
Duct-able up to 50ft
115 volt, 60 Hz, 15amp
15 amp electric motor .5 static
Heat Rise 200° F - (@50 degree F ambient)
Discharge Temperature 200°F (93.3°C) to 0°F (-17.8°C)
Fuel Type: Fuel Oil, Diesel, JP8, Kerosene Fuel *
42 gallon (158.99 L) Poly Tank with gauge
Fuel Consumption Rate 3.0 GPH
Nozzle Size 2.50 US GPH 60' B (solid)
Pump Pressure 140 P.S.I Maximum
Approx. Run Time 11 Hours
Exhaust Flue Size 6"
Efficiency 81.0%
Heater only Dimensions 76.5" L x 27" W x 51" H
Dry Weight: 510 lbs.
Shipping Dimensions Crated: 83" L x 37" W x 52" H
Packaged Shipping Weight 580
Approved: CSA

*(No. 1 fuel oil, Diesel, JP8, Kerosene Fuel is recommended when ambient temperature is less than 8 F (-10 C) Discharge temperature (@50 F ambient).

Down Load Brochure Here

Download IDF350 IDF500 Oil Diesel Manual

This item can only be shipped via LTL Freight due to its weight, size, or fragility.

IDF500-Oil Ships from Canada - Factory Direct
