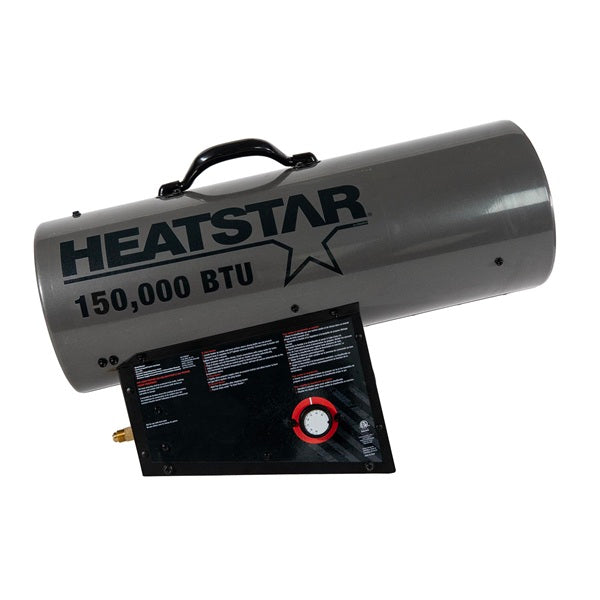

HS170 FA NG HeatStar 150K Btu Forced Air Gas Heater F105511

HeatStar 150,000 Btu Forced Air Natural Gas Contractor Heater Has Regulator And All The Safety You Would Expect From A Heatstar Product.

HS170NG F170180 Replaced with HS170FANG F105115

Heats approximately 3,000 sq. feet

240-degree High-temperature limiter switch

Continuous Ignition

Built-in Thermostat

Natural Gas Regulator Included (Hose not included)



SPECIFICATIONS

Type of Gas: For use with Natural Gas Only

Rating: 150,000 Btu/hr. (49.9 kW)

Fuel Consumption: 138 cu ft/hr. (3.9 cu m/hr.)

Fuel Orifice Port No.: 18

Fuel Orifice Size: 1.5 mm

Heated Air Output: 450 CFM (12.74 CU MM)

Gas Supply Pressure:

To regulator Max.: ½ psig (4.5 kPa)

To regulator Min.: 9” WC (2.3 kPa)

Regulator out 4” WC (0.98 kPa)

Electrical Input: 115V, 60 Hz, 1Ø, 3a

Min. Operating Voltage: 100V

Ignition: Direct Spark, interrupted type

Primary Flame Control: Solid State, 10-15 sec. timing

High Temperature Control: 240°F (116°C)

Minimum Ambient Temperature Rating: 0° (-17.8°C)

Listed/Certified: CSA

Unit Weight: 34 lbs.

Shipping Dimensions: 26.5" x 11.5" x 17"

Shipping Weight: 34 lbs

Shipping Cube: 3.0'

Warranty: 1 year limited

2019 Forced Air Natural Gas 150k BTU Industrial Heater Manual

HS170FANG F105511 Ships from Ohio - Factory Direct
