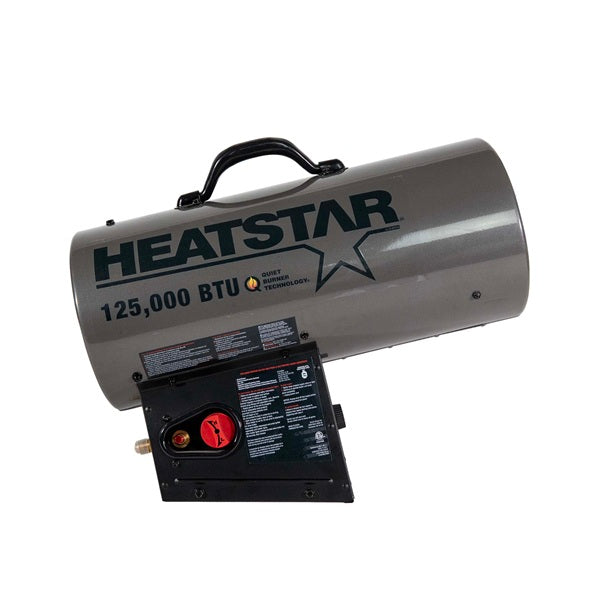

HS125FAV HeatStar 75-125,000 Forced Air LP Heater F105508

75,000 - 125,000 BTU/HR - LP
Heats approximately 3,000 sq. feet
Minimum required tank size: 1 - 40 lb
Runs up to 17 hours on 1 - 40 lb tank (low setting)
240 degree High temperature limiter switch
Automatic Solid State Ignition
Built in Thermostat
20' 3/8” ID hose and regulator included

SPECIFICATIONS

Type of Gas: For use with Propane Only
Rating: 125,000-170,000 Btu/Hr (61.5 - 117 kW)
Fuel Consumption: 3.5 - 5.8 lbs/hr (1.59 - 2.63 kg/hr)
Fuel Orifice Port No.: 18
Fuel  Orifice  Port Size: 0.75 mm
Heated Air Output: 350 CFM (9.91 CU MM)
Gas Supply Pressure:
To regulator Max.: Bottle Pressure
To regulator Min.: 5 psig (0.14 mPa)
Regulator out 28” WC (6.97 kPa)
Electrical Input: 115V, 60 Hz, 1Ø, 5.5a
Min. Operating Voltage: 100V
Ignition: Direct Spark, interrupted type
Primary Flame Control: Solid State, 10-15 sec. timing
High Temperature Control: 240°F (116°C)
Listed/Certified: CSA
Unit Weight:  25 lbs.
Shipping Dimensions:  26.5" x 12" x 15.5"
Shipping Weight: 25 lbs
Shipping Cube: 2.7'
Warranty: 1 year limited

HS125FAV Ships from Ohio - Factory Direct

California Proposition 65 Warning
