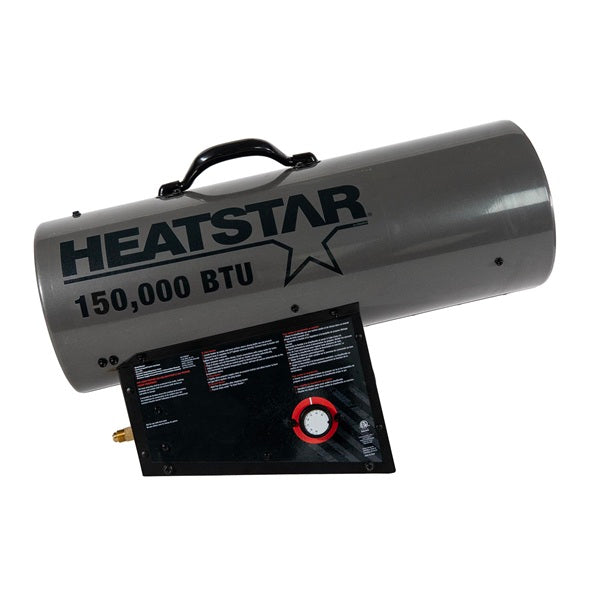

HS170FANG HeatStar 150,000 Btu Forced Air Natural Gas Heater F105511

The HeatStar 150,000 Btu Forced Air Natural Gas Contractor Heater Has Regulator And The Safety You Would Expect From HeatStar Replaces F170180.

The HS170FANG F105115 Replaces HS170NG F170180.

Heats approximately 3,000 sq. feet

240-degree High-temperature limiter switch

Continuous Ignition

Built-in Thermostat

Natural Gas Regulator Included (Hose not included)



SPECIFICATIONS

Type of Gas: For use with Natural Gas Only.

Rating: 150,000 Btu/hr. (49.9 kW).

Fuel Consumption: 138 cu ft/hr. (3.9 cu m/hr.)

Fuel Orifice Port No.: 18

Fuel Orifice Size: 1.5 mm

Heated Air Output: 450 CFM (12.74 CU MM)

Gas Supply Pressure:

To regulator Max.: ½ psig (4.5 kPa)

To regulator Min.: 9” WC (2.3 kPa)

Regulator out 4” WC (0.98 kPa)

Electrical Input: 115V, 60 Hz, 1Ø, 3a

Min. Operating Voltage: 100V

Ignition: Direct Spark, interrupted type

Primary Flame Control: Solid State, 10-15 sec. timing

High Temperature Control: 240°F (116°C)

Minimum Ambient Temperature Rating: 0° (-17.8°C)

Listed/Certified: CSA

Unit Weight: 34 lbs.

Shipping Dimensions: 26.5" x 11.5" x 17"

Shipping Weight: 34 lbs

Shipping Cube: 3.0'

Warranty: 1-year limited

Heatstar Construction Heaters Brochure

Forced Air Natural Gas 150k BTU Industrial Heater Manual

F105511 HS170FANG Ships - Factory Direct

California Proposition 65 Warning
