IDH200QR-G Frost Fighter Indirect LP/NG Recirculating Heater

Frost Fighter IDH Indirect Recirculating Dual Fuel Propane Natural Gas Fired Heater 120V 15 Amp Quiet Running Heater.

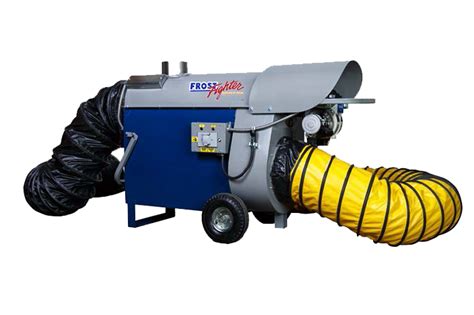

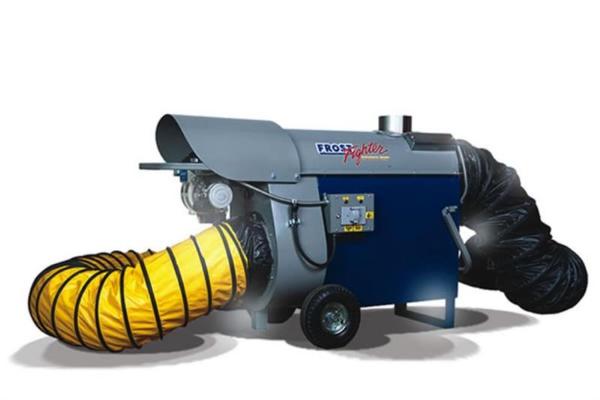

(IDH200QR-G LP/NG Pictured with Optional Duct Hoses)

Compact, lightweight, and extremely powerful, the IDH200QR-LP/NG is equipped with standard re-circulation, High Static Pressure, low dB noise level, and

It is capable of up to 100ft of total duct length. A cool-to-the-touch jacket, stainless steel multi-pass heat exchanger, 3-trials for ignition and

EZ Ball Valve switchover features make this system ideal for portability, durability, and reliable operation applications.

Features:

• Proven reliable commercial-grade burner

• Over 81% efficiency

• Fully Insulated Jacket to minimize heat loss, increase efficiency, and provide excellent to the touch for safety

• Proven "Multi-Pass" Stainless Steel Heat Exchanger provides unsurpassed heat transfer

• Fully independent fan and combustion air provides consistent and dependable operation in cold weather and ensures pre-heating to eliminate cold air delivery at start-up

• High static pressure/high volume fan provides large volumes of air movement with or without ducting attached

• Single 12" Outlet that can accommodate up to 100ft. of supply duct

• 12" Intake that can accommodate up to 50ft. of return duct to reduce fuel consumption and heating times significantly - length of intake duct attached requires equal reduction from 100ft. of supply duct.at 25ft intake = 75ft supply

• Compact design with highly durable 6-Ply Pneumatic tires, handles & lifting bail for easy transport

• Quiet operation of 62dB for noise-sensitive areas

• Durable powder coat finish

• High-efficiency stainless steel heat exchanger

• Optional remote thermostat

• Ball Valve Switchover from Propane to Natural Gas

• ELT Approved

TECHNICAL SPECIFICATIONS

•              Specifications                                 IDH200QR

•              Maximum Heating Capacity     170,000 BTU/h

•              Heated Air Volume                        1,610 CFM

•              Maximum Static Pressure                         5.0"

•              Running Sound Level                  74dB

•              Discharge Temperature              up to 230°F (110°C)

•              Insulated Jacket                              No

•              Outlet Configuration                     Single 12"

•              Inlet Diameter                                 12"

•              Maximum Total Duct Length      Up to 100ft

•              Supply Gas Pressure (LP/NG)   1/2lb PSI max or 7"-14" w.c.

•              Power Requirement                      120V - 15amp

•              Running Amps                                 11.0

•              Crated Dimensions                       64"L x 36"W x 42"H

•              Approximate Crated Weight     320lbs

•              Approvals / Certification            CSA

Specifications are subject to change without prior notice.

This item can only be shipped via LTL Freight due to its weight, size, or fragility.

IDH200QR-G LP/NG Ships from Canada - Factory Direct
