IDH500QRM-Oil Frost Fighter Indirect Recirculating 500K Heater

Frost Fighter Indirect Oil Diesel Fired Recirculating Heater 500,000 Btu Quiet Running Heater With Voltage Meter And Fan Control.

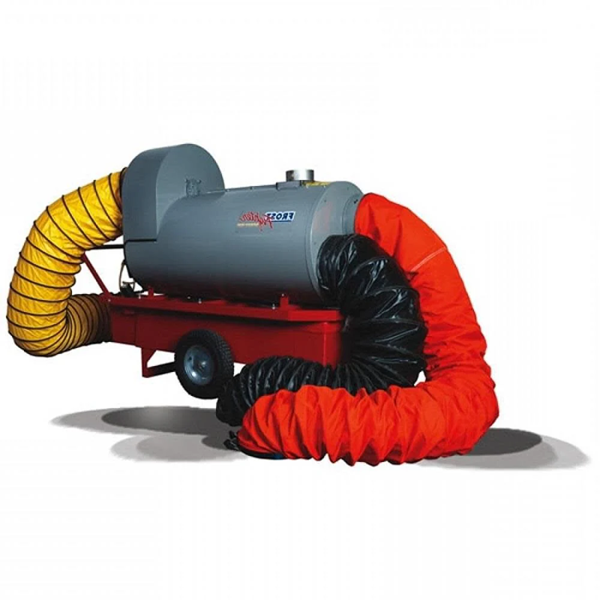

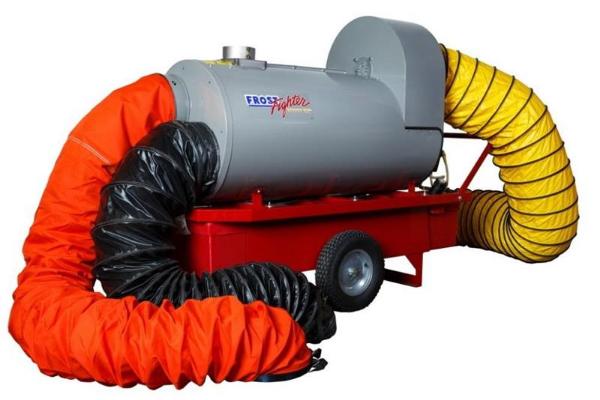

(IDH500QRM Oil Pictured with Optional Duct Hoses)

IDH500QRM multipurpose power meter includes a fan by-pass switch, which allows the fan to run without the burner.

Allows the unit to provide powerful duct fresh air

Not only is it the most efficient, durable, and reliable indirect-fired heater available in its class, but

The IDH500QRM Oil is also one of the quietest at 62dB and offers some of the most versatile performance features, including standard recirculation for MAXIMUM fuel efficiency savings!

Features:

•Proven reliable commercial-grade burner

•Over 81% efficiency

•Fully Insulated Jacket to minimize heat loss, increase efficiency, and provide excellent to the touch for safety

•Proven "Multi-Pass" Stainless Steel Heat Exchanger provides unsurpassed heat transfer

•Fully independent fan combustion air provides consistent and dependable operation in cold weather and ensures pre-heating to eliminate cold air delivery at start-up

•High static pressure/high volume fan provides large volumes of air movement with or without ducting attached

•Available with Dual 12" or Single 16" Outlet that can accommodate up to 100ft. of supply duct

•16" Intake that can accommodate up to 50ft. of return duct to reduce fuel consumption and heating times significantly (The intake duct length attached requires an equal reduction from 100ft. of the supply duct. @ 25ft intake = 75ft supply)

•Compact design with highly durable 6-Ply Pneumatic tires, handles lifting bail for easy transport

•Quiet operation of 62dB for noise-sensitive areas

•Durable powder coat finish

• High-efficiency stainless steel heat exchanger

TECHNICAL SPECIFICATIONS



Specifications                                                 IDH500QRM

Maximum Heating Capacity                     500,000 BTU/h

Heated Air Volume                                        4,800 CFM

Maximum Static Pressure                         3.5"

Running Sound Level                                   68dB

Discharge Temperature                              up to 250°F (121°C)

Insulated Jacket                                              Yes

Outlet Configuration                                     Dual 12" or Single 16"

Inlet Diameter                                                 16"

Maximum Total Duct Length                     Up to 100ft per Outlet

Environmental Spill Containment         Yes

Fuel Tank Capacity (US Gal)                      Std. 42 / Opt. 60

Approx. Run Time                                           14 hrs / 20 hrs

Power Requirement                                      120V - 20amp

Running Amps                                                 17.6

Crated Dimensions                                       83"L x 37"W x 52"H

Approximate Crated Weight                     580lbs

Approvals / Certification                            CSA / ETL



*(No. 1 fuel oil, Diesel, JP8, Kerosene Fuel is recommended when ambient temperature is less than 8 F (-10 C) Discharge temperature (50 F ambient).

(Specifications are subject to change without prior notice.)

Available Installed Options for Above Oil/Diesel Units:

ESC Environmental Fuel Spill Containment for 42-Gallon Tank

XLT 60 US Gallon Double Wall Fuel Tank

XLT 118 US Gallon Double Wall Fuel Tank

HRS Heat Recovery System

IDH500QR – IDH1000 - ENV Combustion Optimizer Feature Sheet
