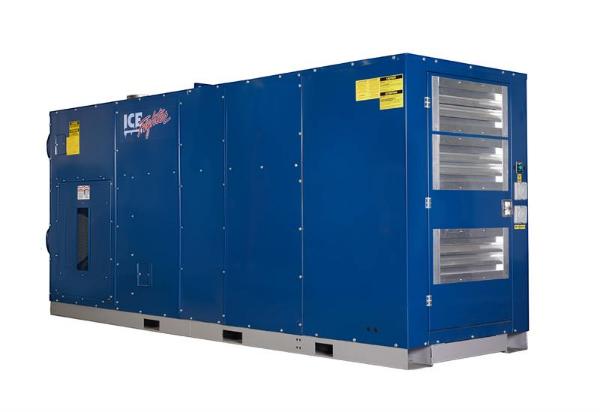

IHS1500 Frost Fighter Indirect Oil Fired Heater 1,500,000

Frost Fighter Indirect High Static Oil Diesel Fired Heater 11,000 CFM 1,500,000 Btu's.

Features
1,500,000 BTU/h

High efficiency 208/230V 3 Phase

Highest Static in the Industry at 5″

Standard Forklift Pockets & Lifting Hooks for quick & easy movement of heaters

Fully insulated exterior shell – Cool to the Touch, plus enhanced efficiency and temperature rise

Satin Coated Steel + Powder Coated Paint – resists rust and prolongs durability

Durable Stainless Steel Heat Exchanger – increase heater life

Universal Duct Attachment – easily attach either Pin Lock or Belt Cuff Duct styles

Polarity Light Indicator – instant notification of proper power being supplied to the heater

Independent Fan & Blower – ensures better light-offs & combustion control

 • two 2-stage burner operations help keep fuel costs in line.
 • Proven 'multi-Pass' Stainless Steel Heat Exchanger provides industry-leading heat transfer.
 • Fully insulated shell to minimize heat loss and keep the unit cool to the touch for safety.
 • Large, powerful fan produces very high CFM and static pressure for long duct runs.

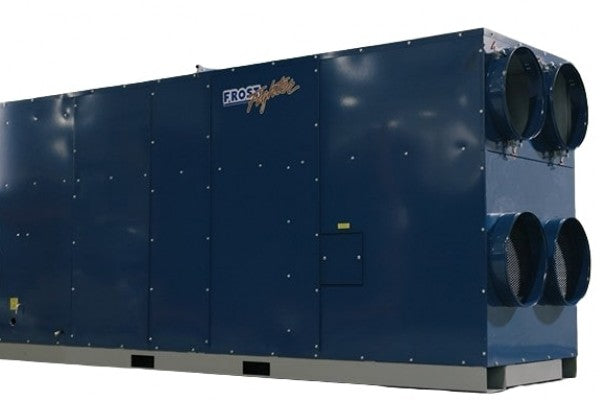

 • 2 -20-inch outlets and 2 -20 20-inch air returns on the same side help lower the footprint of the heater on the job site.
 • ability to run in continuous ventilation mode.
 • minimum of 100 ft of ducting per outlet.
 • Durable powder coat finish. (available in custom colors -charges apply)
 • Multiple forklift pockets simplify loading and placement of heater.

Specifications
IHS1500 Oil /Diesel

Dual Stage Firing Lo-Fire & Hi-Fire
Capacity - 1,500,000 BTU/h

Outlet Configuration dual 20"

Inlet Configuration dual 20."

Maximum Total Duct Length Up to 100ft per Outlet

 Electrical Requirements:

  Sold Standard with 208/230V - 3 Phase Electrical

   3 Phase 230V/3Ph

   Optional Power Configurations
     460V/3Ph

     575V/3Ph

    Air Flow - 11,000 CFM

 Outlets - 2 x 20"

 Static - 5″

Motor - 5Hp

Shipping Dimensions – 158"L x 44"W x 75"H

Shipping Weight - 3000 lbs.

Approval - CSA/ETL

 Click Here to Download IHS1500 Brochure
