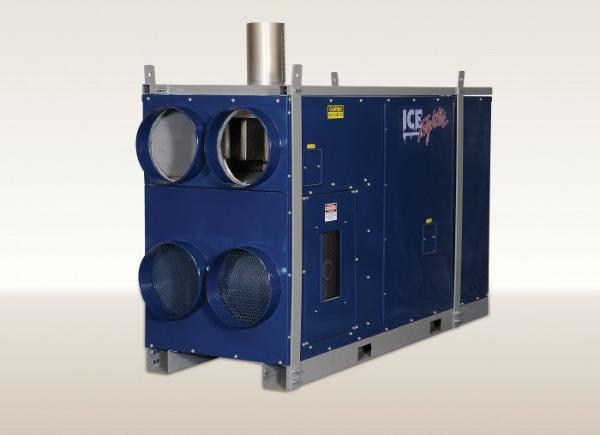

IHS700P Frost Fighter Indirect Oil Fired Heater 700,000 Btu

Frost Fighter Indirect High Static Oil Diesel Fired Heater With HED Electrical  Dual Phase

The Oil Diesel Fired Frost Fighter Heater will now come standard with a PLC  (Programmable Logic Controller), improving reliability and reducing downtime associated with troubleshooting.
The PLC will display real-time operational codes and error codes, reducing diagnostic time. It will also reduce the need to stock spare parts and associated labor costs.
The IHS700P now has an optional 'Operational Status' high-intensity beacon, which will display the following:
Power and operation Burner Status Heater down/lockout situationIHS700P also features a simplified power selector switch with a soft start on both single and,
3-phase power reducing start-up amperage draw and guarantees correct fan rotation, as well as a convenience light in the burner compartment

• The New IHS700P Same Performance - Easier Maintenance
• Optional HED high efficiency provides Dual Power of 1 Phase & 3 Phase
• Highest Static in the Industry at 4" (Available on All Models)
• Easy Burner Switch out Option available on IHS700 – change from LP/NG to Oil/Diesel or vice versa
• Industrial Grade Beckett Burner (Oil/Diesel Version)
• Standard Forklift Pockets & Lifting Hooks for quick & easy movement of heaters
• Stackable While in Storage
• Optional Fuel Tanks Available
• Fully insulated exterior shell – Cool to the Touch, plus enhanced efficiency and temperature rise
• Satin Coated Steel + Powder Coated Paint – resists rust and prolongs durability
• Durable Stainless-Steel Heat Exchanger – increase heater life
• Universal Duct Attachment – easily attach either Pin Lock or Belt Cuff Duct styles
• Polarity Light Indicator – instant notification of proper power being supplied to the heater
• Independent Fan & Blower – ensures better light-offs & combustion control
• 81% US Efficiency Rating / 91% European Efficiency Rating

Specifications: IHS700P Oil/Diesel

• Over 80% efficient.
• PLC reduces troubleshooting time and simplifies maintenance.
• Proven 'multi-Pass' Stainless Steel Heat Exchanger provides industry-leading heat transfer.
• Fully insulated shell to minimize heat loss and keep the unit cool to the touch for safety.
• LED convenience light in burner compartment for working on the unit at night.
• Large, powerful fan produces very high CFM and static pressure for long duct runs.
• 2 -16-inch outlets and 2 -16-inch air returns on the same side help lower the footprint of the heater on the
• site.
• ability to run in continuous ventilation mode.
• minimum of 100 ft of ducting per outlet.
• Optional built-in 175 USG fuel cell provides up to 35 hours of run time.
• Optional operational status beacon allows quick visual indicators for unit status.
• Optional burner switch-out kit allows units to run on LP/NG or Oil/Diesel- must be done at the time of order.
• Durable powder coat finish. (available in custom colors -charges apply)
• Multiple forklift pockets and lifting bale simplify loading and placement of heater.
• Available in 1 and 3 phase 208/230V, as well as 3 ph460V and 3ph 600V.
• CSA Approved

Optional Fuel Tank for IHS700P – 175 US Gallon

• Heating Capacity: 700,000 Btu's
• Fuel requirements: Oil/Diesel
• Heated air volume: 4,600 CFM
• Max Static Pressure: 4"
• Max Discharge Temp: 250°F (121°C)
• Dimensions:
• 100"Lx35"
• Wx59" H
• 1600lbs w/o tank.
• 100"Lx35"

• Wx88" H
• 1900 lbs. w/tank

Click Here to Download Operational Sheet

IHS700P Series Product Video

This item can only be shipped via LTL Freight due to its weight, size, or fragility.

Ships from Canada- Factory Direct
