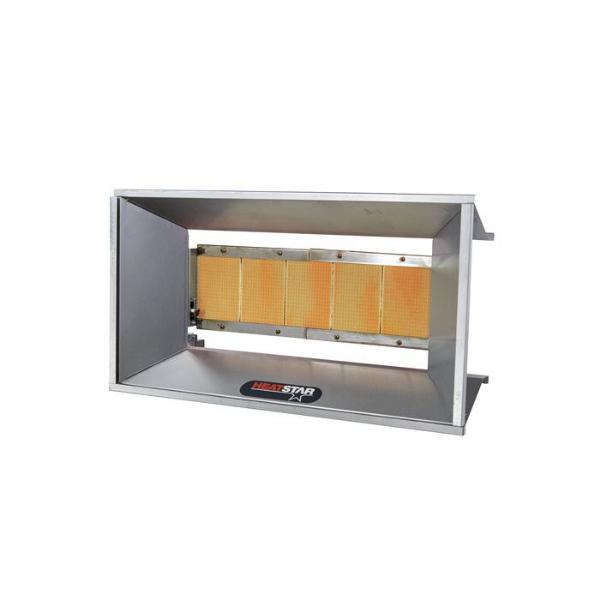

HS4040 PP HeatStar Overhead Infrared Gas 40,000 Btu Heater

HS4040 PP HeatStar By Enerco 4000 Series High Intensity 40,000 Overhead Radiant Heater, Power Pile Ignition, Natural Gas F140626, Propane F140727.

HeatStar By Enerco 4000 Series High Intensity 40,000 Btu Overhead Radiant Heater, Power Pile Ignition

4000 Series Heaters arrive to be set up to operate at 40,000 BTU/hr. The box has a kit that enables users to convert the BTU setting to 30,000. Infrared Heaters direct the line of sight radiant heat to floor-level objects, which heat surrounding air to the desired temperature. High-intensity heaters are ideal for use in drafty or windy conditions like a loading dock or auto mechanic bays where doors open during winter. Dock personnel and floor-level objects will benefit from comfortable warmth like the sun's rays despite wind and cold. This particular heater uses a power pile ignition fueled by liquid propane. It ships with a thermostat; no electricity or direct venting is required for operation. A ten-year, pro-rated burner assembly warranty and a limited one-year gas control warranty protect Heatstar high-intensity heaters. Consult the user manual for installation instructions and clearance to combustible guidance.

Heatstar High-Intensity Heaters have multiple outputs per model series

Additional burner orifices are included that enable the installer to increase or decrease the output of the heater

·         Spark ignition heaters ship with 40VA transformers

·         Millivolt control heaters shipped with thermostat

·         Non-corrosive materials are used throughout heater construction

·         Weight 25

·         Fuel Type  Natural Gas or Propane

·         Ignition Manual

·         Electrical Rating             Not Applicable

·         Electrical Connection  Not Applicable

·         Transformer Included   Not Applicable

·         Gas Inlet Connection   1/2in ID FPT

·         Gas Inlet Pressure Min Natural Gas - 6.18in WC / Propane - 11in WC

·         Gas Inlet Pressure Max 14in WC

·         Mounting Height Range               10ft - 12ft

·         Clearance to Combustibles: Horizontal              Top 34in; Side 30in; Back 30in; Below 68in

·         Venting Required            Not Required

·         Thermostat Optional    Sold Separately

·         Item Length (in)               35.25

·         Item Width (in) 20.75

·         Item Height (in)                12.25

·         Item Weight (lb)               26.14

·         Warranty: Gas Control 1 Year Limited

·         Warranty: Burner            10-Year Limited Pro-Rated

Model   HS4040PPNG F140626 / HS4040PPLP F140727

Ships from Bedford Hts, Ohio Warehouse
