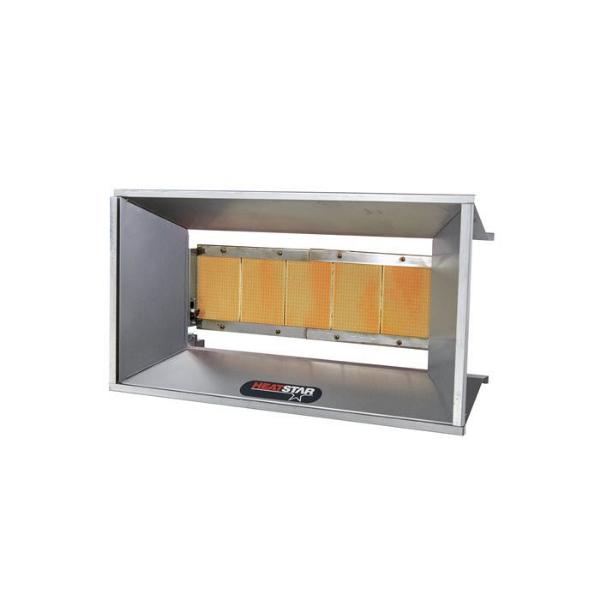

HS4040 SP 40,000 Btu Auto Spark Overhead Infrared Gas Heater

4000 Series Heaters arrive to setup to operate at 40,000 BTU/hr. The box has a kit that enables users to convert the BTU setting to 30,000. Infrared Heaters direct the line-of-sight radiant heat to floor-level objects, which heat surrounding air to the desired temperature. High-intensity heaters are ideal for use in drafty or windy conditions like a loading dock or auto mechanic bays where doors open during winter. Dock personnel and floor-level objects will benefit from comfortable warmth like the sun's rays despite wind and cold. This particular heater uses a spark ignition system that ships with a 120V / 24VAC / 40VA transformer. A 10-year, pro-rated burner assembly warranty and a limited one-year gas control warranty protect HeatStar high-intensity heaters. Consult the user manual for installation instructions and clearance to combustible guidance.

HeatStar High-Intensity Heaters have multiple outputs per model series

Additional burner orifices are included that enable the installer to increase or decrease the output of the heater

Spark ignition heaters ship with 40VA transformers

Millivolt control heaters shipped with thermostat

Non-corrosive materials are used throughout heater construction

More Information

Weight 25

Fuel Type            Natural Gas or Propane

Ignition Electronic

Electrical Rating             120V / 60Hz

Electrical Connection  Transformer

Transformer Included   Yes

Gas Inlet Connection   1/2in ID FPT

Gas Inlet Pressure Min Natural Gas - 6.8in WC / Propane - 11in WC

Gas Inlet Pressure Max 14in WC

Mounting Height Range               10ft - 12ft

Clearance to Combustibles: Horizontal              Top 34in; Side 30in; Back 30in; Below 68in

Venting Required            Not Required

Thermostat Optional    Sold Separately

Item Length (in)               35.25

Item Width (in) 20.75

Item Height (in)                12.25

Item Weight (lb)               27.04

Warranty: Gas Control 1 Year Limited

Warranty: Burner            10-Year Limited Pro-Rated

Model   HS4040SPNG F140626 / HS4040SPLP F140731

Ships from Bedford Hts, Ohio Warehouse
