• HS8060 60,000 Btu Auto-Spark Overhead Infrared Gas Heater
1 1

Enerco Heating

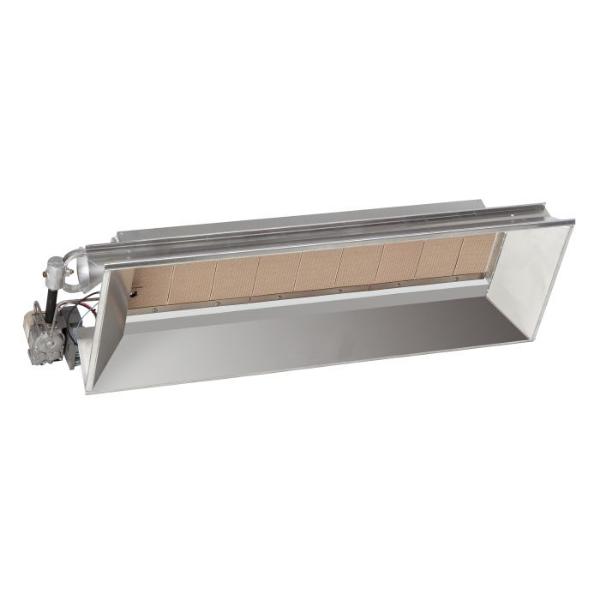

HS8060 SP 60,000 Btu Auto-Spark Overhead Infrared Gas Heater

F180629

$599.00
$599.00
Shipping calculated at checkout.
Specifications

HeatStar By Enerco High Intensity Auto Spark Over Head Industrial Heater Gas 60,000 Heaters

Enerco F180629 HS8060SPNG F180731 HS8060SPLP 8000 Series Heaters arrive set up to operate at 60,000 BTU/hr. The box comes with a kit that enables user to convert the BTU setting to 50,000. Infrared Heaters direct line of site radiant heat to floor-level objects, which in turn, heat surrounding air to the desired temperature.
High intensity heaters are ideal for use in drafty or windy conditions like a loading dock or auto mechanic bays where doors are open during winter conditions.
Dock personnel and objects at floor level will benefit from comfortable warmth like the rays of the sun despite wind and cold.
This particular heater uses a spark ignition system that ships with a 120V / 24VAC / 40VA transformer.
Heatstar high intensity heaters are protected by a 10 year, pro-rated burner assembly warranty and a limited one year gas control warranty.
Consult the user manual for installation instructions and for clearance to combustible guidance.

  • Heatstar High Intensity Heaters have multiple outputs per model series
  • Additional burner orifices are included that enables the installer to increase or decrease the output of the heater
  • Spark ignition heaters ship with 120V / 24VAC / 40VA transformer.
  • Requires optional 24v or 120v thermostat
  • Non-corrosive materials are used throughout heaters construction

Unlike other brands, Enerco heaters can be positioned horizontal (pointing straight down) up to a 45 degree angle, making them among the most
versatile high intensity heaters on the market.

Enerco Heater Specifications:

                                           Clearance to Combustibles       Reflector Dimensions

Model No.      BTU/HR.       Top    Sides    Back    Below          (Inches) L-W-H

HS8060SP      60,000            40"     30"       30"       84"             45-1/4 x 19-1/4 x 12

Control Systems for above models:

HS8060SP  - Automatic Spark Ignition on Pilot with Safety burner shutoff , 24VAC control with intermittent pilot. (pilot is off when heater is off)
Transformer 120V/24V shipped loose with heater.

  • High intensity heaters have multiple outputs per model series
  • Additional burner orifices are included that enables the installer to increase or decrease the output of the heater
  • Automatic Spark ignition heaters ship with 120V / 24VAC / 40VA transformer.
  • Requires optional 24v or 120v thermostat

NOTE: ALL 8060 GAS HEATERS COME WITH AN EXTRA ORIFICE TO CONVERT TO 50M.

ERXL (Single Stage) & ER2STG (Two Stage) Radiant Tube Heaters
2020 High Intensity Infrared Industrial Heater Manual
2020 High Intensity Infrared Industrial Heater Schematic

This item can only be shipped via LTL Freight due to its weight, size, or fragility.

Ships from Ohio - Factory Direct
