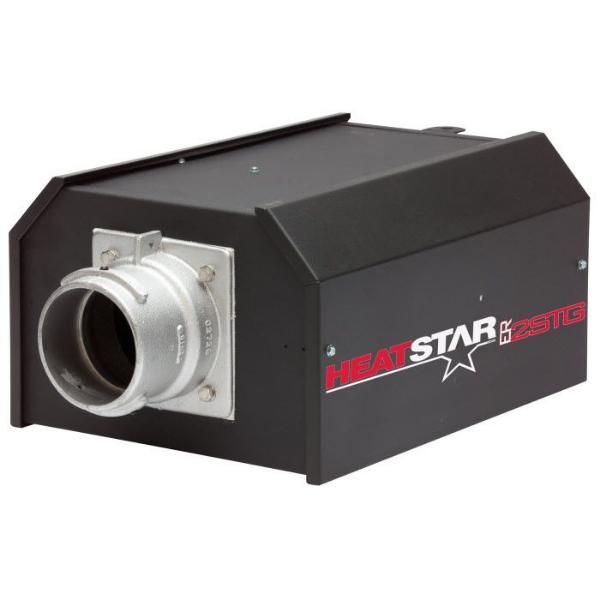

ER2STG 100 Enerco 2 Stage Burner Control Box 60,000-100,000 BTU

HeatStar By Enerco F102602 Propane And F102600 Natural Gas 60,000 100,000 BTU Two Stage Burner Control Box For Low Intensity Radiant Tube Heating.

ER2STG100 F102602 LP F102600 NG Heatstar Low Intensity Radiant Tube Heaters direct line-of-sight radiant heat to floor-level objects, which in turn, heat the surrounding air to the desired temperature.
Personnel and objects at floor level enjoy instant, cost-saving comfort.
This heater comes in either natural gas (F102600) or propane (F102602). The 30 ft tube set (F106401XL) is sold separately.

10 Year Limited Warranty

• 16-Gauge Aluminized Tubing
• Outside or Inside Air for Combustion
• Sealed Burner Control Box
• Full Cover Polished Aluminum Reflector
• Installs easily as a Straight or U-Tube Configuration
• Category I Vertical Venting
• Category III Horizontal Venting
• BTU per Hour - 100,000
• Electrical Rating - 120V
• Electrical Connection - Pigtail Leads in Junction Box
• Gas Inlet Connection - 1/2in ID FPT
• Mounting Height Range - 12ft - 15ft
• Clearance to Combustibles:
• Horizontal - Above 6in; Below 74in; Sides 36in
• Clearance to Combustibles: Vertical - N/A
• Venting: Length Min/Max - 25ft
• Venting: Exhaust - 25ft
• Venting: Air Intake - 25ft
• Thermostat Optional
• Fuel Type - Natural Gas or Propane
• Ignition - Hot Surface
• Weight (36Lbs)
• Certification - CSA

The customer is responsible for checking local codes and ordinances for permitted uses.

Click Here to Download Heater Brochure

Click Here to Download, Single Stage Owner’s Manual and Warranty Information

Click Here to Download Single Stage Parts Schematic

Click Here to Download, Two Stage Owner’s Manual and Warranty Information

Click Here to Download Two-Stage Parts Schematic

ER2STG100 Ships from Ohio - Factory Direct

California Proposition 65 Warning
