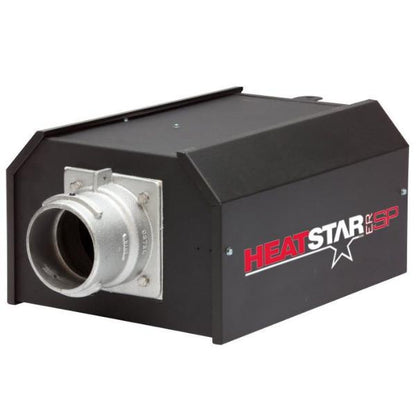

ERSP125 Enerco 125K Btu Single Stage Burner Control Box Spark Ignition

The HeatStar ERSP125 By Enerco F102657SP Propane And F102656SP Natural Gas 125,000 Btu Single Stage Burner Control Box For Low Intensity Radiant Tube Heat

This single-stage burner box comes as either natural gas (F102656SP) or propane (F102657SP)

•     10 Year Limited Warranty
•     16-Gauge Aluminized Tubing
•     Outside or Inside Air for Combustion

•     Sealed Burner Control Box
•     Full Cover Polished Aluminum Reflector
•     Installs easily as Straight or U-Tube Configuration
•     Category I Vertical Venting
•     Category III Horizontal Venting

• Input BTU per Hour - 125,000
• Electrical Rating - 120V
• Electrical Connection - Pigtail Leads in Junction Box
• Gas Inlet Connection - 1/2in ID FPT
• Mounting Height Range - 14ft - 19ft
• Clearance to Combustibles:    Horizontal - Above 6in; Below 87in; Sides 36in
• Clearance to Combustibles: Vertical - N/A
• Venting: Length Min/Max - 25ft
• Venting: Exhaust - 25ft
• Venting: Air Intake - 25ft
• Thermostat Optional - N/A
• Fuel Type - Natural Gas or Propane
• Warranty: 10 Year Limited
• Weight (36Lbs)
• Certification – CSA
• Models ERSP125-N / ERSP125-LP
