ERXL40 Enerco Single Stage Tube 40,000 Heater Burner Control

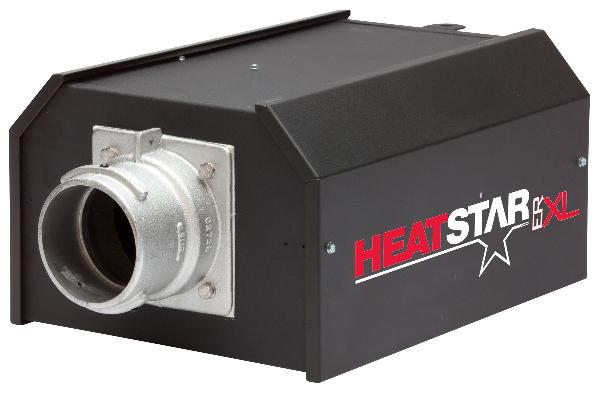

HeatStar By Enerco F102595XL Propane And F102594XP Natural Gas 40,000 Hot Surface Single Stage Burner Control Box For Low Intensity Radiant Tube Heat.

Heatstar ERXL40NG Hot Surface Low Intensity Radiant Tube Heaters direct line-of-sight radiant heat to floor-level objects, which in turn, heat surrounding air to desired temperature.
Personnel and objects at floor level enjoy instant, cost-saving comfort.
This Single Stage Burner Control Box comes as either natural gas (F102594XL) or propane (F102595XL)

• 10 Year Limited Warranty
• 16-Gauge Aluminized Tubing
• Outside or Inside Air for Combustion
• Sealed Burner Control Box
• Full Cover Polished Aluminum Reflector
• Installs easily as Straight or U-Tube Configuration
• Category I Vertical Venting
• Category III Horizontal Venting
• BTU per Hour - 40000
• Electrical Rating - 120V
• Electrical Connection - Pigtail Leads in Junction Box
• Gas Inlet Connection - 1/2in ID FPT
• Mounting Height Range - 10ft - 14ft
• Clearance to Combustibles:
• Horizontal - Above 6in; Below 55in; Sides 36in
• Clearance to Combustibles: Vertical - N/A
• Venting: Length Min/Max - 25ft
• Venting: Exhaust - 30ft
• Venting: Air Intake - 30ft
• Thermostat Optional
• Fuel Type - Natural Gas or Propane
• Ignition - Hot Surface
• Weight (36Lbs)
• Certification - CSA
