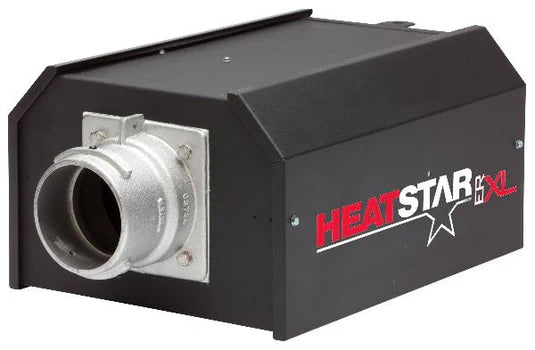

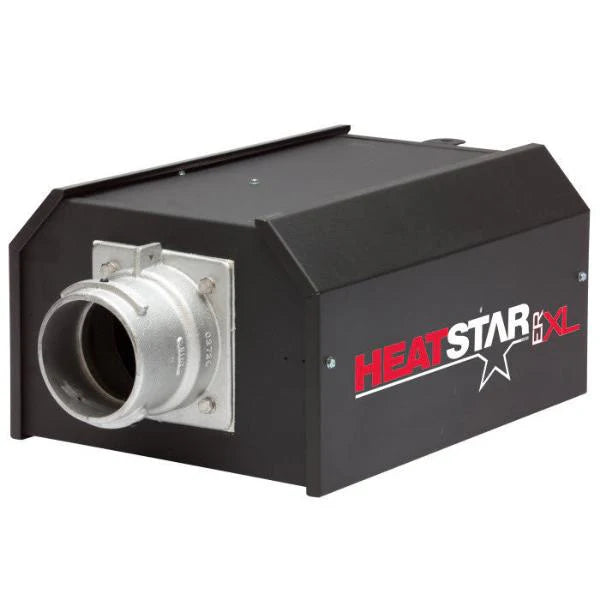

ERXL100 Enerco Single Stage 100000 Tube Hot Surface Burner Control Box

HeatStar Enerco F102655XL Propane And F102654XP Natural Gas 100,000 Hot Surface Single Stage Burner Control Box For Low Intensity Radiant Tube Heat.

ERXL100NG F102654XL ERXL100LP F102655XL Heatstar Low Intensity Radiant Tube Heaters direct line-of-sight radiant heat to floor-level objects, which in turn, heat the surrounding air to the desired temperature.
Personnel and objects at floor level enjoy instant, cost-saving comfort.
This Single Stage Burner Control Box comes as either natural gas (F102654XL) or propane (F102655XL)

• 10 Year Limited Warranty
• 16-Gauge Aluminized Tubing
• Outside or Inside Air for Combustion
• Sealed Burner Control Box
• Full Cover Polished Aluminum Reflector
• Installs easily as a Straight or U-Tube Configuration
• Category I Vertical Venting
• Category III Horizontal Venting
• BTU per Hour - 100,000
• Electrical Rating - 120V
• Electrical Connection - Pigtail Leads in Junction Box
• Gas Inlet Connection - 1/2in ID FPT
• Mounting Height Range - 10ft - 14ft
• Clearance to Combustibles:
• Horizontal - Above 6in; Below 74in; Sides 36in
• Clearance to Combustibles: Vertical - N/A
• Venting: Length Min/Max - 25ft
• Venting: Exhaust - 25ft
• Venting: Air Intake - 25ft
• Thermostat Optional
• Fuel Type - Natural Gas or Propane
• Ignition - Hot Surface
• Weight (36Lbs)
• Certification - CSA
• ERXL100NG F102654XL ERXL100LP F102655XL
