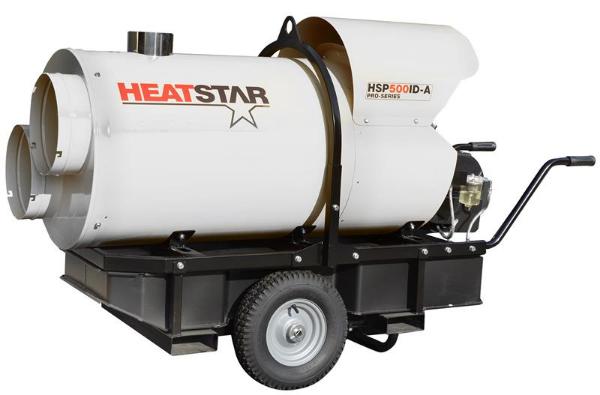

HSP500ID-A HeatStar Indirect Oil Diesel Fired 400,000 Heater

F105125

Regular price: $6,590.00
Regular price
Sale price: $6,590.00

Shipping calculated at checkout.

Specifications

HeatStar By Enerco PRO-SERIES 400,000 BTUs Indirect Oil Diesel Is An Ideal Heating Solution For Industrial Or Rental Applications

F105125 HSP500ID-A unit ships with factory-installed dual 12" duct adapters.

When paired with up to 100' of HeatStar high-quality, high-temperature ducting, this indirect-fired heater is an ideal heating system for delivering even heat to both event tents and construction sites with clean, fresh, heated air.

You can place the unit outside the space and duct the warm air in, or, for fuel savings, you can set the heater in the space to be heated and vent the exhaust out.

Either way, it is hard to beat the comfort and safety of indirect heat.

Heated fuel filter Standard Comes Standard with Dual 12" Duct Hose Adapter Attached

Heavy duty frame

Lift bracket

Heat exchanger to keep exhaust gas and heated air separate

46-gallon tank capacity

Powerful fans ensure high static pressure

Long-life stainless steel combustion chamber

Electronic flame control

Water-resistant flame control box

Automatic safety and control devices

Optional thermostat available for constant temperature control

Durable powder-coated finish

Heavy-duty duct adapter available

UL Certified

Product details

BTU per Hour 400000 (500000 with kit)

Fuel Type Kerosene, Diesel 1# or 2#, Fuel Oil, Jet A fuel

Tank Capacity (Gal) 46

Ignition Continuous

Electrical Rating 120v, 60 HZ, 13 Amp

Air Volume (CFM) 4032

Heated Fuel Filter Standard

Heated Nozzle No

Clearance to Combustibles 6 ft

Recirculating Ducting Optional: F105127 Adapter Ring / 24in x 25ft Duct and Clamp

Duct Length Max 100 ft

Duct Diameter Standard Dual (12in) or Single F105126 (16in)

Multiple Ducting Optional F150040 12in x 25ft / F150050 16in x 25ft

Wheel Type Pneumatic

Thermostat Optional F105108 Analog (32') / F105106 Digital (16')

Item Length (in) 83

Item Width (in) 29

Item Height (in) 49

Item Weight (lb.) 484

Warranty 1 Year Limited

Certification UL

Model HSP500ID-A F105125

Indirect Oil-Fired Forced Air 500k BTU Industrial Heater Schematic

This item can only be shipped via LTL Freight due to its weight, size, or fragility.

HSP500ID-A F105125 Ships from Ohio - Factory Direct
