HS45GSP HeatStar 45,000 BTU Garage Shop LP/NG Tube Heaters
F102855
- Regular price
-
$1,039.00 - Regular price
-
- Sale price
-
$1,039.00
Specifications
HeatStar By Enerco 45,000 BTU LP Propane NG Natural Gas 10' Radiant Heat Tube Heaters, Are Prefect for Garages Shops And Patios.

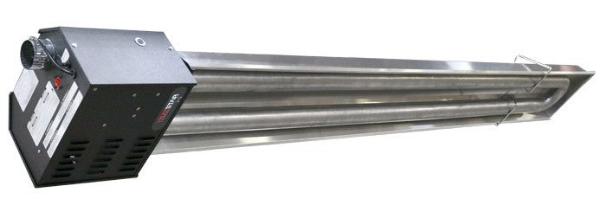

The HS45GSP F102855 F102857 Tube Heater is a source of efficient and effective low-intensity infrared radiant heat. At 45,000 BTU, it provides uniform heat distribution while operating quietly. The compact three-aluminized steel U-tube design and the polished deep-dish reflector are perfect for all garages, shops, and patios. The burner and tube set come in one box. Optional accessories include a horizontal vent kit, a vertical vent kit, a 24v thermostat, a decorative grid kit, and an install kit.
· Electrical Rating 120 vac, 60 Hz, single phase, 1 amp
· Electrical Connection 3 Pin Molded Plug
· Gas Inlet Connection 1/2in Female NPT
· Mounting Height Range 8-14ft
· Clearance to Combustibles: Horizontal 6in above, 54in below, 24in burner side, 24in exhaust side, 6in reflector end, 24in burner end
· Clearance to Combustibles: Vertical (Hung Burner Side Up) - 6in above, 36in below, 36in burner side, 6in exhaust side, 6in reflector end, 24in burner end
· Venting: Length Min/Max 3-25ft
· Venting: Exhaust 4in Diameter
· Venting: Air Intake 3in diameter
· Thermostat Optional 10371 - Analog
· Fuel Type Natural Gas or Propane
· Weight 91
· Model HS45GSP
· Length 10ft 3in
· Width 15in
· Height 11in
· Use Garage / Workshop / Patio
· Warranty 3 Year Limited on Parts & Burner, 10 Year on Tube
· Certification CSA
Model HS45GSP F102855 F102857
The HS45GSP Tube Heaters come in boxes with a burner and a tube. Optional accessories and installation kits are available. The heater can be used with Natural Gas or Propane.
Click Here to Download 2020 Installation Owner's Manual and Warranty Information
Click Here to Download 2020 Heater Schematic
This item can only be shipped via LTL Freight due to its weight, size, or fragility.
