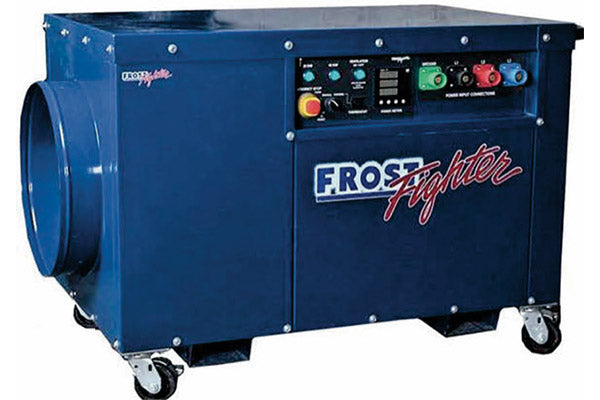

E154QR Frost Fighter 480v 150KW 512,000 Electric Construction Heater

The Frost Fighter E154QR 512,000 Btu 480v 150KW Electric Indirect Fired, High Static, Electric 460v 480v 150KW Portable Construction Heater System.

Price Includes US Tariff from Canada to the US

E154QR FROST FIGHTER FEATURES:

*Dependable performance, long service life, and minimal maintenance.

*High efficiency backward inclined aluminum MI fan delivers high airflow and static pressures with ultra-quiet operation.

*High-quality offset elements are designed to supply heat evenly and efficiently. The rugged enclosed tubular element design provides superior durability and maximum safety and is suitable for contaminated atmospheres.

*PLC control and VFD Inverter system provide variable airflow for maximum heating efficiency and power.

*PLC control offers visual operational status information for reliable operation and simplified troubleshooting at a glance.

*Intuitive control panel design with simple heat level selection, fan operation, and status indication for all functions.

*The digital power meter displays the voltage or current of all 3 inputs. Thus, there is no guessing whether the power supply is adequate or correct.

*Can record and display operation hours, power consumption, max voltages supplied, and current consumed.

*Recessed control panel visually indicates heat settings, airflow, and safety E-Stop with status indication.

*It uses industry-standard 400 AMP color-coded cam-lock power connectors, allowing for convenient, safe power connections anywhere. No hard wiring is required.

*24" round duct connection flanges are provided on the air discharge inlet. No adapters must be purchased or attached.

*Optional remote thermostat plugs directly into the control panel.

*Fork pockets & HD locking casters for easy transport.

*UL Approved.

• ·         HEAT SETTING 150KW
• ·         HEAT OUTPUT 512,000 Btu/hr.
• ·         CFM 8000
• ·         MAX TEMPERATURE RISE 150°F/65°C
• ·         SOUND LEVEL 83db
• ·         ELECTRICAL SUPPLY 460-480 volts 3PH 175 Amp
• ·         POWER REQUIREMENTS 460/480 Volt Models-145 Amps @ 480 VAC 3 PH
• ·         STATIC PRESSURE Up to 4.5" W.C. (1100Pa)
• ·         BLOWER/MOTOR 19.75" (500mm) 4.2 HP BI Motorized Alum. Impeller
• ·         DUCT ABLE AIR OUTLET & INLET 24" (600mm) Duct-able Supply (Outlet) & Return (Inlet)
• ·         L x W x H 58" L x 32" W x 39.5" H - (147 cm x 81 cm x 100cm)
• ·         WEIGHT 540 lbs (245kg)
• ·         MAXIMUM DUCT LENGTH OUTLET- Two 24" X 50 ft. High Temperature Duct
• ·         MAXIMUM DUCT LENGTH INLET- One 24" x 25 ft. Close Pitch Ducting

E154QR Brochure

This item can only be shipped via LTL Freight due to its weight, size, or fragility.

E154QR Ships from Canada - Factory Direct.
