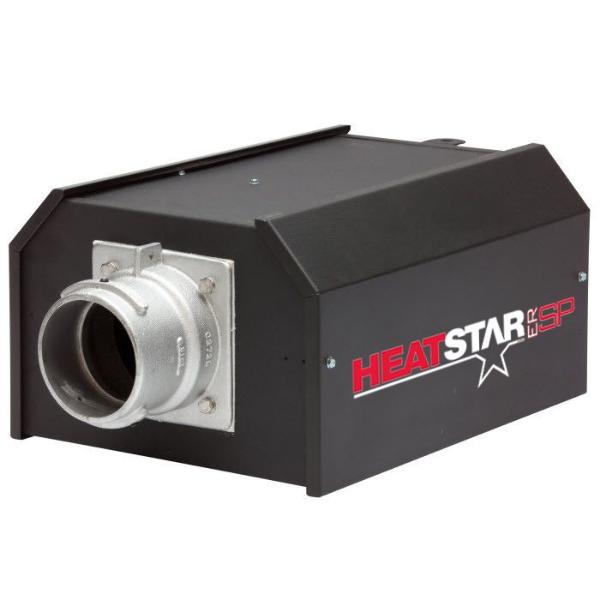

ERSP40 Enerco 40,000 Single Stage Burner Box Control Spark Ignition

The HeatStar ERSP40 By Enerco F102594SP Propane And F102495SP Natural Gas 60,000-100,000 BTU Single Stage Burner Control Box For Low Intensity Radiant Tube Heat

ERSP40 NG Natural Gas F102594SP ERSP40 LP Propane F102595SP HeatStar Low Intensity Radiant Tube Heaters direct line-of-sight radiant heat to floor-level objects, which in turn, heat surrounding air to desired temperature.
Personnel and objects at floor level enjoy instant, cost-saving comfort.
This heater control burner box comes as either NG natural gas (F102594SP) or LP propane

•     10 Year Limited Warranty
•    16-Gauge Aluminized Tubing
•     Outside or Inside Air for Combustion
•     Sealed Burner Control Box
•     Full Cover Polished Aluminum Reflector
•     Installs easily as Straight or U-Tube Configuration
•     Category I Vertical Venting
•     Category III Horizontal Venting
  • Electrical Rating - 120V
  • Electrical Connection - Pigtail Leads in Junction Box
  • Gas Inlet Connection - 1/2in ID FPT
  • Mounting Height Range - 10ft - 14ft
  • Clearance to Combustibles:    Horizontal - Above 6in; Below 55in; Sides 36in
  • Clearance to Combustibles: Vertical - N/A
  • Venting: Length Min/Max - 25ft
  • Venting: Exhaust - 25ft
  • Venting: Air Intake - 25ft
  • Thermostat Optional - N/A
  • Fuel Type - Natural Gas or Propane
  • Warranty: 10 Year Limited
  • Weight (36Lbs)
  • Certification – CSA
  • Models ERSP40-N / ERSP40-LP
    • Input BTU per Hour - 40,000
• Click Here to Download, Single Stage Owner’s Manual and Warranty Information

ERSP40 Ships Factory Direct
