ERXL125 Enerco Single Stage 120000 Tube Hot Surface Burner Control Box

HeatStar Enerco F102657XL Propane And F102656XP Natural Gas 100,000 Hot Surface Single Stage Burner Control Box For Low Intensity Radiant Tube Heat

ERXL125 F102656 XL LP F102657 XL NG Heatstar Low Intensity Radiant Tube Heaters direct line-of-sight radiant heat to floor-level objects, which in turn, heat surrounding air to desired temperature.
Personnel and objects at floor level enjoy instant, cost-saving comfort.

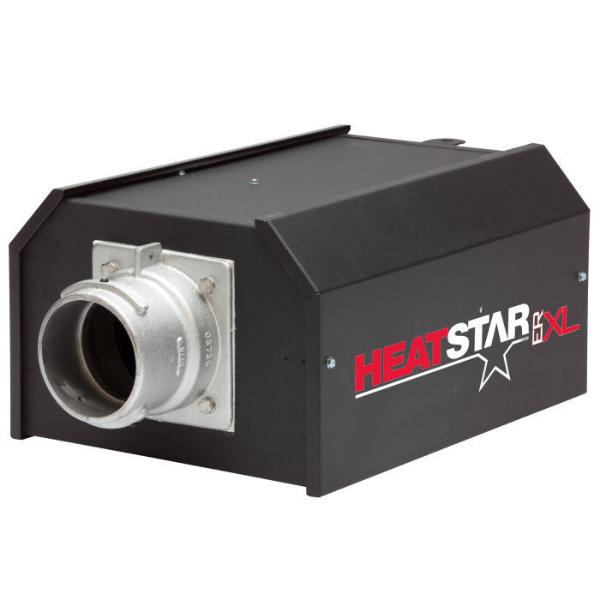

This Single Stage Burner Control Box comes as either natural gas (F102656XL) or propane (F102657XL)

• 10 Year Limited Warranty
• 16-Gauge Aluminized Tubing
• Outside or Inside Air for Combustion
• Sealed Burner Control Box
• Full Cover Polished Aluminum Reflector
• Installs easily as Straight or U-Tube Configuration
• Category I Vertical Venting
• Category III Horizontal Venting
• BTU per Hour - 125,000
• Electrical Rating - 120V
• Electrical Connection - Pigtail Leads in Junction Box
• Gas Inlet Connection - 1/2in ID FPT
• Mounting Height Range - 10ft - 19ft
• Clearance to Combustibles:
• Horizontal - Above 6in; Below 87in; Sides 36in
• Clearance to Combustibles: Vertical - N/A
• Venting: Length Min/Max - 25ft
• Venting: Exhaust - 25ft
• Venting: Air Intake - 25ft
• Thermostat Optional
• Fuel Type - Natural Gas or Propane
• Ignition - Hot Surface
• Weight (36Lbs)
• Certification - CSA

Click Here to Download Heater Brochure

Click Here to Download, Single Stage Owner’s Manual and Warranty Information

Click Here to Download Single Stage Parts Schematic

Click Here to Download, Two Stage Owner’s Manual and Warranty Information

Click Here to Download Two Stage Parts Schematic

ERXL125 Ships Factory Direct

California Proposition 65 Warning
