ERXL175 Enerco 175,000 BTU 1 Stage Tube Heater Burner Control

Heatstar Low Intensity Radiant Tube Heaters direct line-of-sight radiant heat to floor-level objects, which in turn, heat surrounding air to desired temperature.

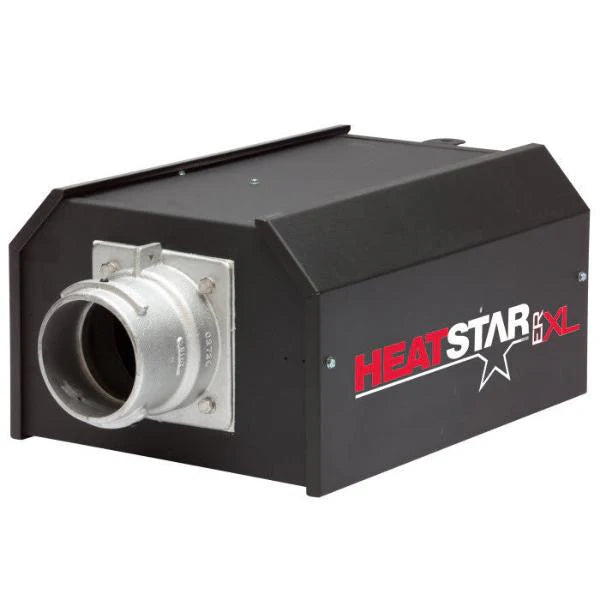

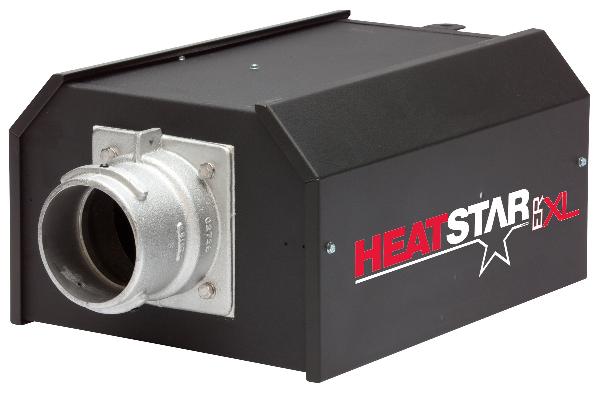

HeatStar By Enerco ERXL175 NG Natural Gas / ERXL175 LP Propane 175,000 BTU NG Natural Gas F102660XL Or LP Propane F102661XL Single Stage Burner Control Box. Personnel and objects at floor level enjoy instant, cost-saving comfort.
This heater comes as either natural gas (F102660XL) or propane (F102661XL). 50 ft (F106407XL) or 60 ft (F106403XL) tube set sold separately.

• 10 Year Limited Warranty
• 16-Gauge Aluminized Tubing
• Outside or Inside Air for Combustion
• Sealed Burner Control Box
• Full Cover Polished Aluminum Reflector
• Installs easily as Straight or U-Tube Configuration
• Category I Vertical Venting
• Category III Horizontal Venting
• BTU per Hour - 175,000
• Electrical Rating - 120V
• Electrical Connection - Pigtail Leads in Junction Box
• Gas Inlet Connection - 1/2in ID FPT
• Mounting Height Range - 15ft - 25ft
• Clearance to Combustibles:
• Horizontal - Above 6in; Below 87in; Sides 36in
• Clearance to Combustibles: Vertical - N/A
• Venting: Length Min/Max - 25ft
• Venting: Exhaust - 25ft
• Venting: Air Intake - 25ft
• Thermostat Optional
• Fuel Type - Natural Gas or Propane
• Ignition - Hot Surface
• Weight (36Lbs)
• Certification - CSA
