Frost Fighter Heating

IDF350-Oil Frost Fighter Indirect Oil Fired Heater 350,000

IDF350 Oil-2x12

Regular price
$5,946.00
Regular price
Sale price
$5,946.00
Shipping calculated at checkout.
Specifications

Frost Fighter IDF Indirect Oil/Diesel Fired Portable Heater 350,000 Btu 110V 15 Amp Heating Unit

IDF350-II-Oil Frost Fighter Indirect Oil-Diesel Fired Portable Heater Duct-able up to 50ft, our IDF lineup comes standard with many features designed for safety, performance, and efficiency not found on competitive systems:
Fully Insulated Jacket, Industrial Grade Beckett Burner (Oil/Diesel), Stainless Steel Heat Exchanger, Satin Coated Steel, Powder Coated Paint, LED Polarity Lighting, High Limit Safety Switch, 6-Ply Pneumatic wheels, Adaptable Duct Connection, 3-Trials for Ignition

Features

  • Standard Lifting Bail Included
  • Can be configured with 2 x 12" or 1 x 16" Outlet front Cap

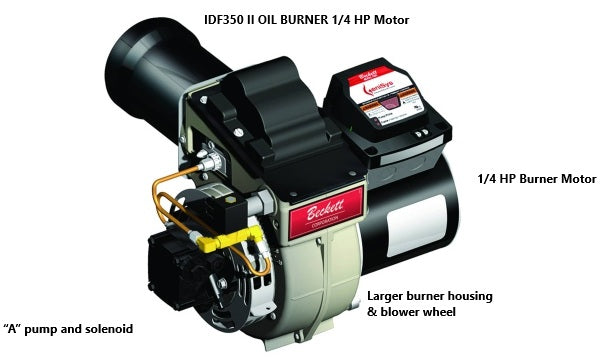

  • Industrial Grade Beckett Burner (Oil/Diesel Version)
  • 42 US Gallon Environmental Spill Containment Fuel Tank Included (Oil/Diesel Version)
  • Optional Heat Recovery System Available to Minimize Service Calls (Oil/Diesel Version)
  • GeniSys Controller with Diagnostic Reader (Oil/Diesel Version)
  • Clean burning flame retention burner
  • Vented burning for safe use in confined areas.
  • Independent fan and combustion air feeds ensure quick winter starts.
  • No heated air led off for combustion or lost up the flue.
  • Service is a breeze
  • Fast parts supply
  • IDF 350 Indirect Oil Fired Heater Input 350,000 BTU
  • IDF 350 Fuel Oil, Diesel, JP8, Kerosene Fuel
  • Output Capacity: 320,000 BTU
  • Heated Air (w/o duct) 2,500 CFM
  • 115 volt, 60 Hz, 15 amp electric motor
  • Efficiency 81.0%
  • Heat Rise 230° F - (@50 degree F ambient)
  • Discharge Temperature 230° F (110°C) to 0°F (-17.8°C)
  • Fuel Type: Fuel Oil, Diesel, JP8, Kerosene Fuel *
  • 42 gallon (158.99 L) Poly Tank with gauge.
  • Fuel Consumption Rate 2.3 GPH
  • Nozzle Size 2.00 US GPH 45' B (solid)
  • Pump Pressure 125 P.S.I Maximum
  • Approx. Run Time 13 Hours
  • Exhaust Flue Size 6"
  • Heater only Dimensions 76.5" L x 27" W x 51" H
  • Dry Weight: 510 lbs.
  • Shipping Dimensions Crated: 83" L x 38" W x 52.5" H
  • Packaged Shipping Weight 580
  • Approved: CSA
*(No. 1 Fuel Oil, Diesel, JP8, Kerosene Fuel is recommended when ambient temperature is less than 8 F (-10 C) Discharge temperature (@50 F ambient).

(Specifications are subject to change without prior notice.)

Available Installed Options for These Oil/Diesel Units:

ESC Environmental Fuel Oil Tank Spill Containment

XLT 60 US Gallon Double Wall Fuel Tank

XLT 119 US Gallon Double Wall Fuel Tank

HRS Heat Recovery System

This item can only be shipped via LTL Freight due to its weight, size, or fragility.

Ships from Canada - Factory Direct

California Proposition 65 Warning

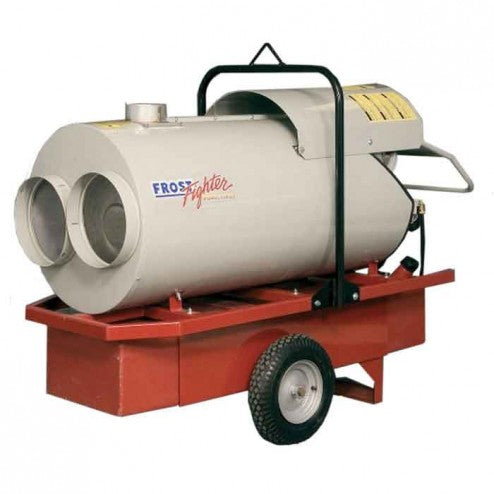

    IDF350 Frost Fighter Heater Right Side
    IDF350 in Use with dual 12" adapter
