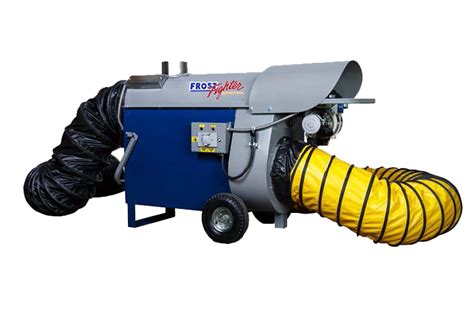

IDH200QR Frost Fighter Indirect LP NG Recirculating Heater

Frost Fighter IDH Indirect Recirculating Dual Fuel LP Propane And Natural Gas Fired Heater 120V 15 Amp Quiet Running Heater.

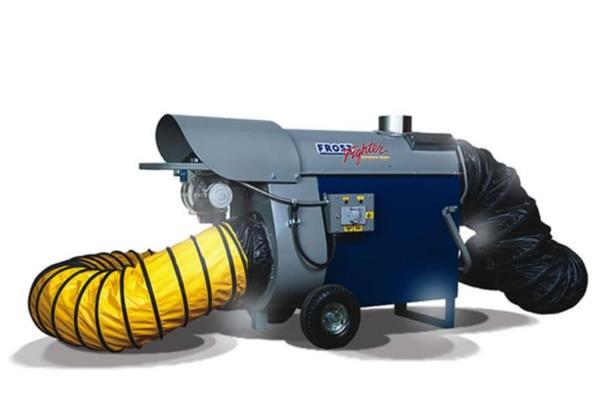

(IDH200QR LP NG Gas Pictured with Optional Duct Hoses)

Compact, lightweight, and extremely powerful, the IDH200QR LP NG is equipped with standard re-circulation, High Static Pressure, low dB noise level, and

It is capable of up to 100ft of total duct length. A cool-to-the-touch jacket, stainless steel multi-pass heat exchanger, 3-trials for ignition and

EZ Ball Valve switchover features make this system ideal for portability, durability, and reliable operation applications.

Features:

• Proven reliable commercial-grade burner

• Over 81% efficiency

• Fully Insulated Jacket to minimize heat loss, increase efficiency, and provide excellent to the touch for safety

• Proven "Multi-Pass" Stainless Steel Heat Exchanger provides unsurpassed heat transfer

• Fully independent fan and combustion air provides consistent and dependable operation in cold weather and ensures pre-heating to eliminate cold air delivery at start-up

• High static pressure/high volume fan provides large volumes of air movement with or without ducting attached

• Single 12" Outlet that can accommodate up to 100ft. of supply duct

• 12" Intake that can accommodate up to 50ft. of return duct to reduce fuel consumption and heating times significantly - length of intake duct attached requires equal reduction from 100ft. of supply duct.at 25ft intake = 75ft supply

• Compact design with highly durable 6-Ply Pneumatic tires, handles & lifting bail for easy transport

• Quiet operation of 62dB for noise-sensitive areas

• Durable powder coat finish

• High-efficiency stainless steel heat exchanger

• Optional remote thermostat

• Ball Valve Switchover from Propane to Natural Gas

• ELT Approved

TECHNICAL SPECIFICATIONS

•              Specifications                                 IDH200QR

•              Maximum Heating Capacity     170,000 BTU/h

•              Heated Air Volume                        1,610 CFM

•              Maximum Static Pressure                         5.0"

•              Running Sound Level                  74dB

•              Discharge Temperature              up to 230°F (110°C)

•              Insulated Jacket                              No

•              Outlet Configuration                     Single 12"

•              Inlet Diameter                                 12"

•              Maximum Total Duct Length      Up to 100ft

•              Supply Gas Pressure (LP/NG)   1/2lb PSI max or 7"-14" w.c.

•              Power Requirement                      120V - 15amp

•              Running Amps                                 11.0

•              Crated Dimensions                       64"L x 36"W x 42"H

•              Approximate Crated Weight     320lbs

•              Approvals / Certification            CSA

Specifications are subject to change without prior notice.
