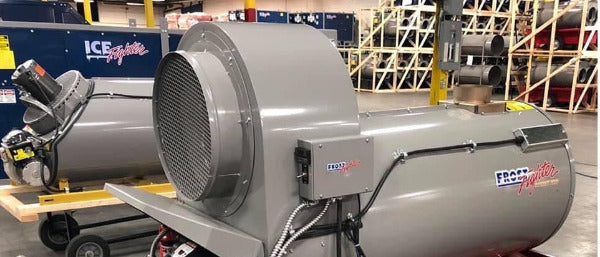

IDH400QRM-G Frost Fighter Indirect Recirculating Gas Heater

Frost Fighter Indirect Recirculating Dual Fuel Propane Natural Gas Fired Heater 395,000 Btu 110-120V 15 Amp Heater With Meter

(Pictured with Optional Duct Hoses)

It has a Multipurpose Digital Power meter, fan bypass switch, voltage meter, and Fan Control.

The multipurpose power meter includes a fan bypass switch, which allows the fan to run without the burner.

Not only are the IDH400QR-LP/NG the most efficient, durable, and reliable Indirect heaters in this popular class,

They also boast one of the quietest operating dB noise levels available.

Combined with standard recirculation, fully insulated jacket, High Static Pressure, adaptable duct attachment, stainless steel multi-pass heat exchanger,

3-trials for ignition and EZ Ball Valve switchover features,

The IDHQR Series is designed to provide excellent fuel savings and trouble-free operation in the harshest environments.

Features:

• Proven & reliable commercial grade burner

• Over 81% efficiency

• Fully Insulated Jacket to minimize heat loss, increase efficiency, and provide cool to the touch for safety

• Proven "Multi-Pass" Stainless Steel Heat Exchanger provides unsurpassed heat transfer

• Fully independent fan and combustion air provides consistent and dependable operation in cold weather and ensures pre-heating to eliminate cold air delivery at start-up

• High static pressure/high volume fan provides large volumes of air movement with or without ducting attached

• Available with Dual 12" or Single 16" Outlet that can accommodate up to 100ft. of supply duct

• 16" Intake that can accommodate up to 50ft. of return duct to reduce fuel consumption and heating times

The length of the intake duct attached requires an equal reduction from 100ft. of the supply duct. @ 25ft intake = 75ft supply)

• Compact design with highly durable 6-Ply Pneumatic tires, handles amp lifting bail for easy transport

• Quiet operation of 62dB for noise-sensitive areas

• Durable powder coat finish

• High-efficiency stainless steel heat exchanger

• Optional remote thermostat available

• Ball Valve Switchover from Propane to Natural Gas

• ETL Approved

TECHNICAL SPECIFICATIONS

Specifications                                                 IDH400QRM

Maximum Heating Capacity                     340,000 BTU/h

Heated Air Volume                                        2,800 CFM

Maximum Static Pressure                         2.8"

Running Sound Level                                   62dB

Discharge Temperature                              up to 290°F (143°C)

Insulated Jacket                                              Yes

Outlet Configuration                                     Dual 12" or Single 16"

Inlet Diameter                                                 16"

Maximum Total Duct Length                     Up to 100ft per Outlet

Supply Gas Pressure (LP/NG)                   1/2lb PSI max. or 7"-14" w.c.

Power Requirement                                      120V - 15amp

Running Amps                                                 9.2

Crated Dimensions                                       83"L x 37"W x 52"H

Approximate Crated Weight                     580lbs

Approvals / Certification                            CSA

Specifications are subject to change without prior notice.

This item can only be shipped via LTL Freight due to its weight, size, or fragility.

Ships from Winnipeg, MB, Canada Warehouse

Standard processing led time to ship: LTL orders will ship within 2 to 5 business days.

Shipping in the Fall and Winter Seasons: LTL orders will ship within 7 to 10 business days.
