IDH500QRM-G Frost Fighter LP/NG Indirect Recirculating Heater

Frost Fighter 500,000 Btu Indirect Recirculating Dual Fuel LP Propane Natural Gas Fired Heater 110-120V 20 Amp With Voltage Meter and Fan Control.

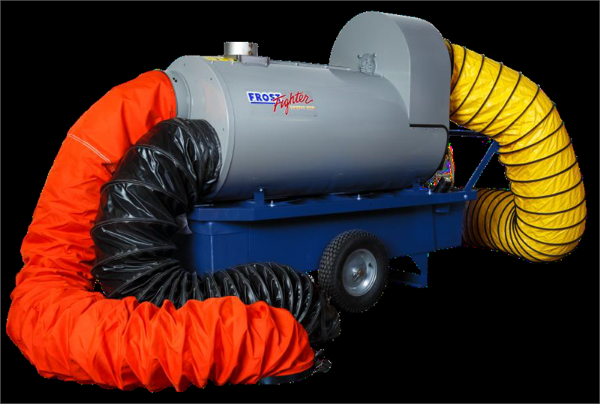

(IDH500QRM-G Pictured with Optional Duct Hoses)

IDH500QRM-G LP/NG has a multipurpose power meter includes a fan by-pass switch, which allows the fan to run without the burner.

They are combined with standard recirculation, a fully insulated jacket, High Static Pressure, adaptable duct attachment, stainless steel multi-pass heat exchanger, 3-trials for ignition, and EZ Ball Valve switchover features.

Features:

• Proven reliable commercial grade burner

• Over 81% efficiency

• Fully Insulated Jacket to minimize heat loss, increase efficiency, and provide cool to the touch for safety

• Proven "Multi-Pass" Stainless Steel Heat Exchanger provides unsurpassed heat transfer

• Fully independent fan combustion air provides consistent and dependable operation in cold weather and ensures pre-heating to eliminate cold air delivery at start-up

• High static pressure/high volume fan provides large volumes of air movement with or without ducting attached

• Available with Dual 12" or Single 16" Outlet that can accommodate up to 100ft. of supply duct

• 16" Intake that can accommodate up to 50ft. of return duct to reduce fuel consumption and heating times significantly (length of intake duct attached requires equal reduction from 100ft. of supply duct. @ 25ft intake = 75ft supply)

• Compact design with highly durable 6-Ply Pneumatic tires, handles, lifting bail for easy transport

• Quiet operation of 62dB for noise sensitive areas

• Durable powder coat finish

• High-efficiency stainless steel heat exchanger

• Optional remote thermostat available

• Ball Valve Switchover from Propane to Natural Gas

• ETL Approved

TECHNICAL SPECIFICATIONS

•              Specifications                                                 IDH500QRM

•              Maximum Heating Capacity                     500,000 BTU/h

•              Heated Air Volume                                        4,800 CFM

•              Maximum Static Pressure                         3.5"

•              Running Sound Level                                   68dB

•              Discharge Temperature                              up to 250°F (121°C)

•              Insulated Jacket                                              Yes

•              Outlet Configuration                                     Dual 12" or Single 16"

•              Inlet Diameter                                                 16"

•              Maximum Total Duct Length                     Up to 100ft per Outlet

•              Supply Gas Pressure (LP/NG)                   1/2lb PSI max. or 7"-14" w.c.

•              Power Requirement                                      120V - 20amp

•              Running Amps                                                 17.6

•              Crated Dimensions                                       83"L x 37"W x 52"H

•              Approximate Crated Weight                     580lbs

•              Approvals / Certification                            CSA / ETL

Specifications are subject to change without prior notice.
