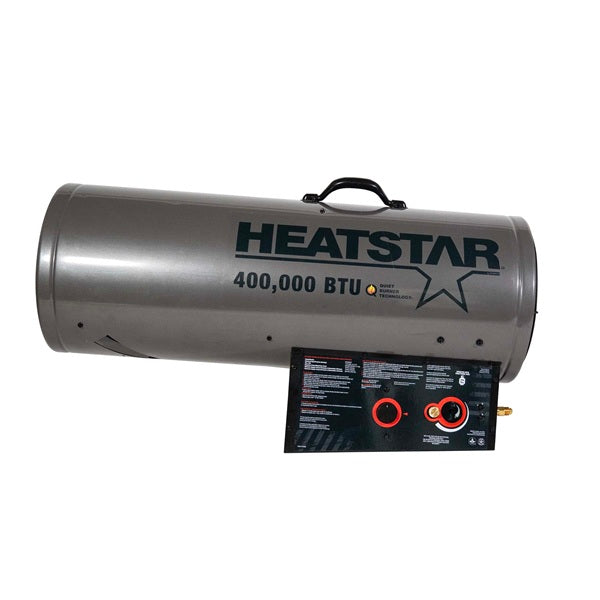

HS400FAVT HeatStar Forced Air Propane 400,000 Btu Heater

HeatStar By Enerco 210,000 - 400,000 Btu Portable Forced Air Propane Heater and Its Heavy Duty Design Built For The Job Site

HS400FAVT F172425 Replaced with HS400FAVT F105510

Heavy-duty steel construction

210,000 - 400,000 BTU/HR - LP Propane

Heats approximately 9,000 sq. feet

Minimum required tank size: 2-100 lb.

Runs up to 17 hours on 2-100-lb tank (low setting)

240-degree High-temperature limiter switch

Automatic Solid-State Ignition

Built-in Thermostat

20' 3/8” ID hose and regulator included

SPECIFICATIONS

Type of Gas: For use with Propane Only

Rating: 210,000-400,000 Btu/Hr. (61.5 117 kW)

Fuel Consumption: 18.5 lbs/hr. (4.2 - 8.4 kg/hr.)

Fuel Orifice Port No. 1

Fuel Orifice Port Size: 2.35 mm

Heated Air Output: 1400 CFM (39.6 CU MM)

Gas Supply Pressure:

To regulator Max.: Bottle Pressure

To regulator Min.: 20 psig (0.14 mPa)

Regulator out 28” WC (6.97 kPa)

Electrical Input: 115V, 60 Hz, 1Ø, 5.5a

Min. Operating Voltage: 100V

Ignition: Direct Spark, interrupted type

Primary Flame Control: Solid State, 10-15 sec. timing

High Temperature Control: 240°F (116°C)

Listed/Certified: CSA

Unit Weight: 47 lbs.

Shipping Dimensions: 39" x 15" x 23"

Shipping Weight: 52 lbs

Shipping Cube: 7.5'

Warranty: 1-year Limited

Heatstar Construction Heaters Brochure

Forced Air Propane 400k BTU Industrial Heater Manual with Thermostat

This item can only be shipped via LTL Freight due to its weight, size, or fragility.
