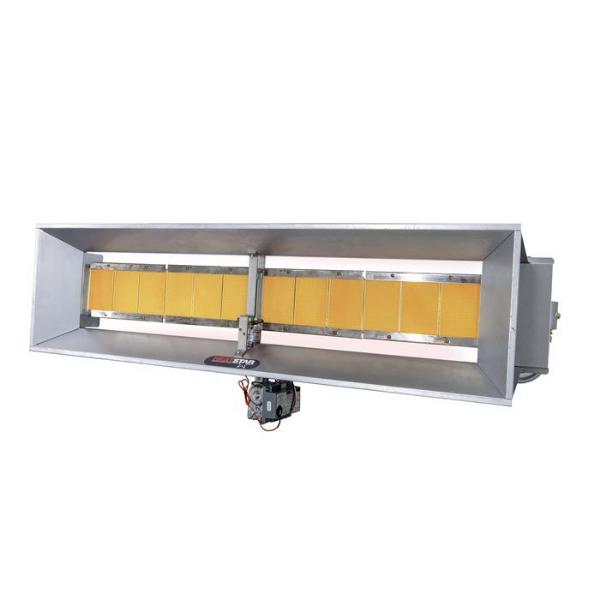

HS9100S PP Enerco 100,000 Btu Overhead Radiant Gas Heater

9100S PP Series Heatstar By Enerco 100,000 Btu Overhead Infrared Radiant LP Propane Natural Gas Heaters

F191826 HS9100SPPNG F191927 HS9100SPPLP Enerco heaters are extremely cost-effective in large buildings and where high bay construction makes forced warm air heating annoyingly drafty
and prohibitively expensive.
Excellent spot heaters, zone heaters or as a total heating system.
Some popular applications include: Auto Service Garages, Warehouses, Factories, Refineries, Loading Docks, Covered Golf Driving Ranges,
Manufacturing Plants, Dry-off areas, Freeze Control, Assembly areas, Entryways, Pump Houses, and many more

High intensity heaters are easy to install.
Simply suspend with chain from the ceiling, being sure to meet all clearance to combustible requirements and mounting height recommendations,
and connect to thermostat.
No flue is required.
Ventilation of the building may be necessary when used as a total heating system in order to dissipate products of combustion (mainly water vapor).

Unlike other brands, Enerco heaters can be positioned horizontal (pointing straight down) up to a 45 degree angle, making them among the most
versatile high intensity heaters on the market.

HS9100SPPNG F191826 / HS9100SPPPLP F191927

Enerco Heater Specifications:
                                           Clearance to Combustibles       Reflector Dimensions

Model No.      BTU/HR.       Top    Sides    Back    Below          (Inches) L-W-H

HS9100PP       100,000          48"     46"       46"       118"             60-1/2 x 21-1/2 x 11

Control Systems for above models:
HS9100PP - Power Pile (self-energizing) control.
No outside electrical source required to turn heater on and off.
Manually lit pilot.
Safety Shutoff on Pilot and Burner.
Power Pile Thermostat shipped loose with each heater.

• High intensity heaters have multiple outputs per model series
• Additional burner orifices are included that enables the installer to increase or decrease the output of the heater
• Millivolt control heater - shipped with thermostat
• Non corrosive materials are used throughout heater construction

NOTE: ALL 9000S HEATERS COME WITH EXTRA ORIFICES TO CONVERT TO 80M OR 90M.

2020 High Intensity Infrared Industrial Heater Manual

2020 High Intensity Infrared Industrial Heater Schematic

This item can only be shipped via LTL Freight due to its weight, size, or fragility.

Ships from Ohio - Factory Direct
