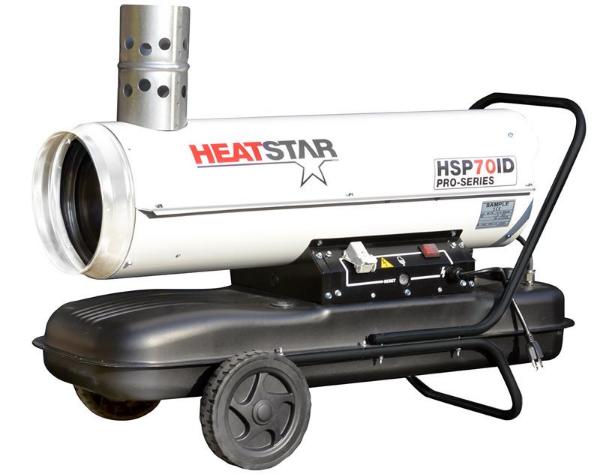

HSP 70ID HeatStar 70K Indirect Oil Diesel Fired Heater F105115

HeatStar By Enerco Pro Series Indirect Oil Diesel Kerosene Fired 70,000 Btu Portable Forced Air Construction Heater

The HSP70ID F105105 Indirect Fired Heaters are highly efficient devices that provide a large volume of 100% clean, dry, and fume-free warm air.
HeatStar PRO-SERIES 70,000 BTU/HR Indirect Fired Heater. The HSP 70ID is an ideal heating solution when heating small job spaces.
You can place the heater outside the space and duct the warm air in, or, for fuel savings, you can place the heater in the space to be heated and vent the exhaust out.
Either way, it is hard to beat the comfort and safety of indirect heat.

• Heat exchanger to keep exhaust gas and heated air separate
• 11.6-gallon tank capacity
• Powerful fans ensure high static pressure
• Long-life stainless steel combustion chamber
• Electronic flame control
• Water-resistant flame control box

• Automatic safety and control devices
• Optional thermostat available for constant temperature control
• Durable powder-coated finish

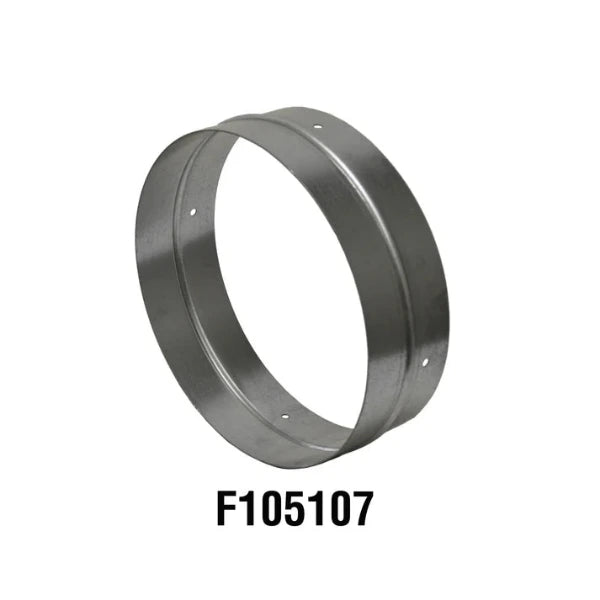

• Heavy-duty duct adapter available
• UL Certified
• Weight (Lbs) 82
• Shipping size L x W x H 47.2" x 16.5" x 21.7"
• BTU per Hour 70000
• Heating Area (Sq. Ft.) 1,750
• Fuel Type Kerosene, Diesel 1# or 2#, Fuel Oil, Jet A fuel
• Tank Capacity (Gal) 11.6
• Ignition Continuous
• Electrical Rating 120v, 60 HZ, 3 Amp
• Air Volume (CFM) 910

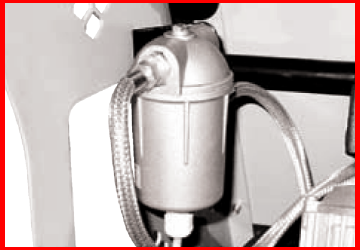

• Heated Fuel Filter F105109
• Heated Nozzle No
• Clearance to Combustibles 6 ft
• Recirculating Ducting Not Applicable
• Optional Single 16" Duct Hose Adapter
• Duct Length Max 25 ft
• Duct Diameter 12 in
• Multiple Ducting Optional Not Applicable
• Wheel Type Solid Rubber

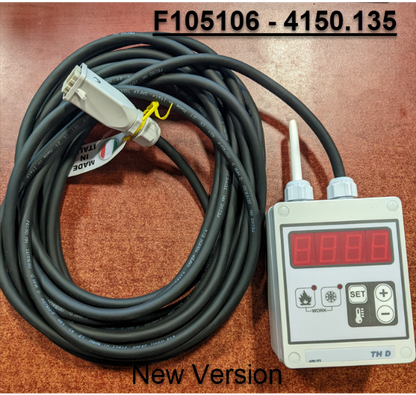

• Thermostat Optional F105108 Analog (32') / F105106 Digital (16')
• Item Length (in) 42

• Item Width (in) 20
• Item Height (in) 30.5

• Item Weight (lb..) 82
• Warranty 1 Year Limited
• Certification UL
• Model HSP70ID
