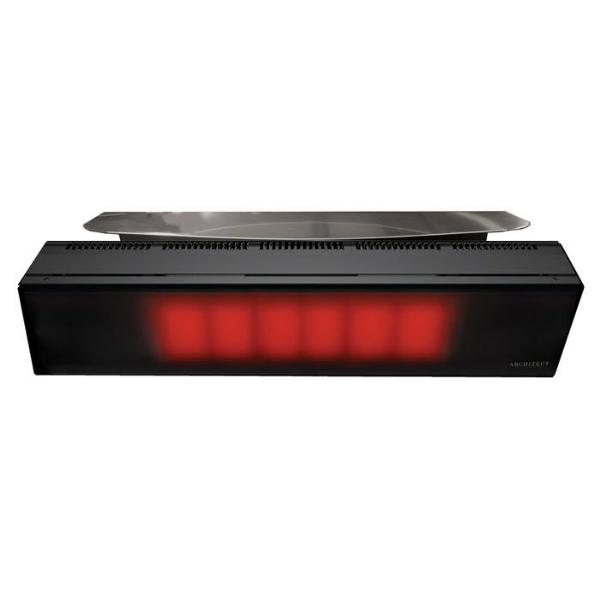

HSRP37GL Architect 37,000 LP/NG Radiant Glass Front Heater F140200

Architect Collection 37,000 BTU Dual Fuel Propane Natural Gas Fired Restaurant Patio Radiant Glass Front Heater.

F140200 is lightweight, compact, and easy to install.
HSRP37GL ceramic glass presents an excellent resistance to thermal shock, increasing the radiant performance.
The gas luminous heater is reliable: the burner, protected between casing and glass, ensures the greatest wind resistance.

Includes:

• Brackets

• Heat deflector • Allows low clearance to ceiling 13"

• On/off remote

• Weight 60
• Fuel Type            NG or LP, dual fuel
• Ignition Spark
• Electrical Rating 120V / 0.5 A / 60 Hz / Single Phase
• Electrical Connection      3-Prong Electrical Plug
• Transformer Included    Yes
• Gas Inlet Connection      1/2in Female NPT
• Gas Inlet Pressure Min   8-in WC Natural Gas, 11-in WC Propane
• Gas Inlet Pressure Max 14-in WC
• Clearance to Combustibles: Horizontal    Top 13-in, Sides 16-in, Back 16-in, Below 48-in
• Venting Required             No
• Thermostat Optional      N/A
• Item Length (in) 10.5
• Item Width (in) 43.1
• Item Height (in) 10.0
• Item Weight (lb.)               20.2
• Warranty: Gas Control   1 Year Limited
• Warranty: Burner             1 Year Limited
• Model   HSRP37GL
• 37,000 BTU per hour
• Runs on propane or natural gas
• Highly efficient, quiet radiant heat
• Included pivot brackets offer directional control and coverage of heat
• Included heat deflector allows for low clearance to ceiling (13-in)
• Includes On/Off Remote
• Compact minimal design
• No air movement
• Instant heat
• Efficient use of fuel
• Constructed of high-quality materials
• Spark ignition
• Certified
