Frost Fighter Heating

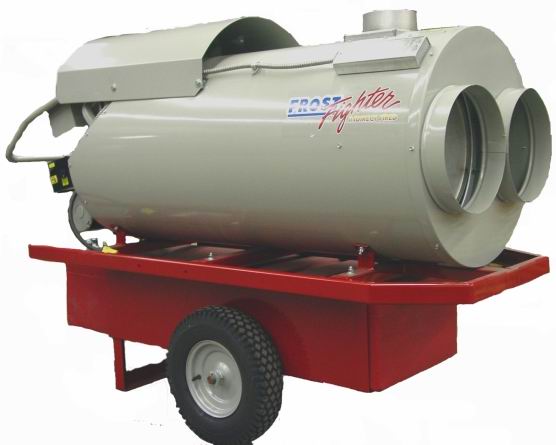

IDF500HS-Oil Frost Fighter Indirect Fired Heater 500,000 Btu

IDF500-HS-Oil-120v 60 Hz-1

Regular price
$0.00
Regular price
Sale price
$0.00
Shipping calculated at checkout.
Specifications

IDF500-HS Frost Fighter Indirect Fuel Oil, Diesel, Kerosene, JP5, JP8 Fired Heater 500,000 Btu 120v 25 amp

The perfect solution where clean, dry heat is required to complete a project on time and within budget.

Ductable up to 50ft, our IDF lineup comes standard with many features designed for safety, performance, and efficiency not found on competitive systems:

Fully Insulated Jacket, Industrial Grade Beckett Burner (Oil/Diesel), Stainless Steel Heat Exchanger,

Satin Coated Steel, Powder Coated Paint, Environmental Spill-Containment Tank (Oil/Diesel), LED Polarity Lighting, High Limit Safety Switch,

6-Ply Pneumatic wheels, Adaptable Duct Connection, 3-Trials for Ignition

Added Features on HS Model

In addition to all the standard features included in our standard IDF Series, the HS models are equipped with a 6-Bade Fan and 1.5HP motor, which provide 2.3" of static pressure to allow for duct lengths of up to 100ft.

Features:

Standard Lifting Bail Included

Industrial Grade Beckett Burner (Oil/Diesel Version)

Can be configured with 2 x 12" or 1 x 16" Outlet Front Cap

42 US Gallon Environmental Spill Containment Fuel Tank Included (Oil/Diesel Version)

Optional Heat Recovery System Available to Minimize Service Calls (Oil/Diesel Version)

2.3" Static Pressure – Increased duct lengths & pressurization for larger structures (Model IDF500HS Only)

Genisys Controller with Diagnostic Reader (Oil/Diesel Version)

The Frost Fighter is portable and simple to operate - all parts have easy access for quick service and routine maintenance.

With over 35 years of proven reliability and rugged durability even in extreme climates, the Frost Fighter remains a leader for temporary heating needs.

Specifications;

IDS500HS 120V 60Hz Indirect Oil Fired Heater Input 500,000 BTU

IDF500 HS - Fuel Oil, Diesel, JP8, Kerosene Fuel

Capacity: 500,000 BTUs

Comes Standard Double Air Outlets 2x12" Outlets (Single 16" Outlet Available on request)

Heated Air (w/o duct) 3,250 CFM

Static 2.3" WC runs up to 100' of Duct

115 volt, 60 Hz, 25 amp

1.5 HP 25 amp Electric Fan Motor

Heat Rise 200° F - (@50 degree F ambient)

Discharge Temperature 200°F (93.3°C) to 0°F (-17.8°C)

Fuel Type: Fuel Oil, Diesel, JP8, Kerosene Fuel *

42-gallon (158.99 L) Poly Tank with gauge and environmental containment.

Fuel Consumption Rate 3.0 GPH

Nozzle Size 2.50 USGPH 60' B (solid)

Pump Pressure 140 P.S.I Maximum

Approx. Run Time 11 Hours

Exhaust Flue Size 6"

Efficiency 81.0%

Stainless Steel Heat Exchanger

Powder-coated paint finish and fully insulated

16" semi-pneumatic wheels with inner tube (4 ply)

Heater only Dimensions 76.5" L x 27" W x 51" H

This item can only be shipped via LTL Freight due to its weight, size, or fragility.

Ships from Winnipeg, MB, Canada Warehouse

California Residents Click here for detailed information on Prop 65

    IDF500HS-Oil Frost Fighter Indirect Fired Heater 500,000 Btu
    Duct adapter  16” single
    IDF500HS-Oil Frost Fighter Indirect Fired Heater 500,000 Btu
