• IDH400QR-Oil Frost Fighter Indirect Recirculating Heater
1 1

Frost Fighter Heating

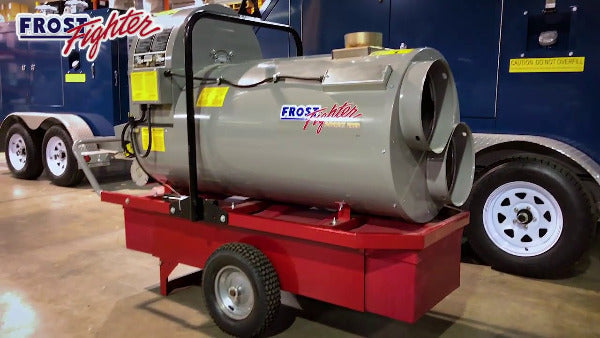

IDH400QR-Oil Frost Fighter Indirect Recirculating Heater

IDH400QR-Oil

$0.00
$0.00
Shipping calculated at checkout.
Specifications

Frost Fighter Indirect Oil Fired Recirculating Heater 110-120V 15 amp Quiet Running Heater

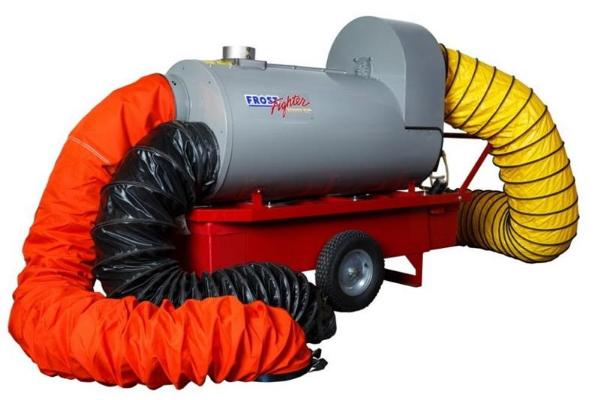

(Pictured with Optional Duct Hoses)
The IDH400QR is also one of the quietest at <65dB and offers some of the most versatile performance features available,
This includes standard recirculation for maximum fuel efficiency savings!

Features:

  • Proven & reliable commercial-grade burner
  • Over 81% efficiency
  • Fully Insulated Jacket to minimize heat loss, increase efficiency, and provide cool to the touch for safety
  • Proven "Multi-Pass" Stainless Steel Heat Exchanger provides unsurpassed heat transfer
  • Fully independent fan & combustion air provides consistent and dependable operation in cold weather and ensures pre-heating to eliminate cold air delivery at start-up
  • High static pressure/high volume fan provides large volumes of air movement with or without ducting attached
  • Available with Dual 12" or Single 16" Outlet that can accommodate up to 100ft. of supply duct
  • 16" Intake that can accommodate up to 50ft. of return duct to reduce fuel consumption and heating times significantly (The intake duct length attached requires an equal reduction from 100ft. of the supply duct. @ 25ft intake = 75ft supply)
  • Compact design with highly durable 6-Ply Pneumatic tires, handles & lifting bail for easy transport
  • Quiet operation of <65dB for noise-sensitive areas
  • Durable powder coat finish
  • High-efficiency stainless steel heat exchanger

TECHNICAL SPECIFICATIONS

Specifications



IDH400QR



Maximum Heating Capacity



340,000 BTU/h



Heated Air Volume



2,800 CFM



Maximum Static Pressure



2.8"



Running Sound Level



< 62dB



Discharge Temperature



up to 290°F (143°C)



Insulated Jacket



Yes



Outlet Configuration



Dual 12" or Single 16"



Inlet Diameter



16"



Maximum Total Duct Length



Up to 100ft per Outlet



Environmental Spill Containment



Yes



Fuel Tank Capacity (US Gal)



Std. 42 / Opt. 60



Approx. Run Time



16.5 hrs / 24 hrs



Supply Gas Pressure (LP/NG)



1/2lb PSI max. or 7"-14" w.c.



Power Requirement



120V - 15amp



Running Amps



9.2



Crated Dimensions



83"L x 37"W x 52"H



Approximate Crated Weight



580lbs



Approvals / Certification



CSA



*(No. 1 fuel oil, Diesel, JP8, Kerosene Fuel is recommended when ambient temperature is less than 8 F (-10 C) Discharge temperature (@50 F ambient).

(Specifications and pricing are subject to change without prior notice.)

Available Installed Options for Above Oil/Diesel Units:

IDH400QR & IDH500QR - XLT 60 US Gallon DW Fuel Tank

IDH400QR & IDH500QR - XLT 119 US Gallon DW Fuel Tank

IDH400QR & IDH500QR - Environmental Spill Containment

IDH400QR & IDH500QR - Heat Recovery System (Installed)

IDH200QR; IDH400QR; IDH500QR - Combustion Optimizer

This item can only be shipped via LTL Freight due to its weight, size, or fragility.

Ships from Winnipeg, MB, Canada Warehouse
