IDH400QRM-Oil Frost Fighter Indirect Recirculating Heater
IDH400QRM-Oil
- Regular price
-
$7,036.00 - Regular price
-
- Sale price
-
$7,036.00
Specifications
Frost Fighter Indirect Oil Diesel Fired Recirculating Heater 395,000 Btu Quiet Running Heater w/Meter with Voltage Meter and Fan Control

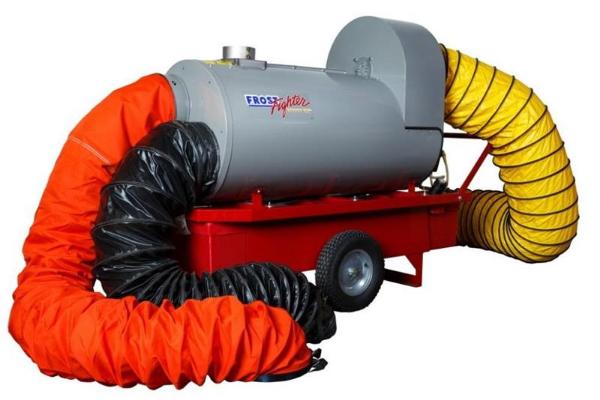

(Pictured with Optional Duct Hoses)
Included with the multipurpose power meter is a fan by-pass switch which allows the fan to run without the burner.
Not only is it the most efficient, durable and reliable Indirect Fired Heater available in its class.
The IDH400QR is also the one of the quietest at <65dB and offers some the most versatile performance features available,
including standard recirculation for MAXIMUM fuel efficiency savings!
Features:
•Proven & reliable commercial grade burner
•Over 81% efficiency
•Fully Insulated Jacket to minimize heat loss, increase efficiency and provide cool to the touch for safety
•Proven "Multi-Pass" Stainless Steel Heat Exchanger provides unsurpassed heat transfer
•Fully independent fan & combustion air provides consistent and dependable operation in cold weather and ensures pre-heating to eliminate cold air delivery at start-up
•High static pressure/high volume fan provides large volumes of air movement with or without ducting attached
•Available with Dual 12" or Single 16" Outlet that can accommodate up to 100ft. of supply duct
•16" Intake that can accommodate up to 50ft. of return duct to significantly reduce fuel consumption and heating times
(length of intake duct attached requires equal reduction from 100ft. of supply duct. @ 25ft intake = 75ft supply)
•Compact design with highly durable 6-Ply Pneumatic tires, handles & lifting bail for easy transport
•Quiet operation of <65dB for noise sensitive areas
•Durable powder coat finish
•High efficiency stainless steel heat exchanger
TECHNICAL SPECIFICATIONS
Specifications |
IDH200QR |
IDH400QR |
IDH500QR |
Maximum Heating Capacity |
170,000 BTU/h |
340,000 BTU/h |
500,000 BTU/h |
Heated Air Volume |
1,610 CFM |
2,800 CFM |
4,800 CFM |
Maximum Static Pressure |
5.0" |
2.8" |
3.5" |
Running Sound Level |
< 74dB |
< 62dB |
< 68dB |
Discharge Temperature |
up to 230°F (110°C) |
up to 290°F (143°C) |
up to 250°F (121°C) |
Insulated Jacket |
No |
Yes |
Yes |
Outlet Configuration |
Single 12" |
Dual 12" or Single 16" |
Dual 12" or Single 16" |
Inlet Diameter |
12" |
16" |
16" |
Maximum Total Duct Length |
Up to 100ft |
Up to 100ft per Outlet |
Up to 100ft per Outlet |
Environmental Spill Containment |
No |
Yes |
Yes |
Fuel Tank Capacity (US Gal) |
18 |
Std. 42 / Opt. 60 |
Std. 42 / Opt. 60 |
Approx. Run Time |
15 hrs |
16.5 hrs / 24 hrs |
14 hrs / 20 hrs |
Supply Gas Pressure (LP/NG) |
1/2lb PSI max. or 7"-14" w.c. |
1/2lb PSI max. or 7"-14" w.c. |
1/2lb PSI max. or 7"-14" w.c. |
Power Requirement |
120V - 15amp |
120V - 15amp |
120V - 20amp |
Running Amps |
11.0 |
9.2 |
17.6 |
Crated Dimensions |
64"L x 36"W x 42"H |
83"L x 37"W x 52"H |
83"L x 37"W x 52"H |
Approximate Crated Weight |
320lbs |
580lbs |
580lbs |
Approvals / Certification |
CSA |
CSA |
CSA / ETL |
*(No. 1 fuel oil, Diesel, JP8, Kerosene Fuel is recommended when ambient temperature is less than 8 F (-10 C) Discharge temperature (@50 F ambient).
Specifications and pricing are subject to change without prior notice.)
Available Installed Options for Above Oil/Diesel Units:
ESC Environmental Fuel Oil Tank Spill Containment
XLT 60 US Gallon Double Wall Fuel Tank
XLT 119 US Gallon Double Wall Fuel Tank
This item can only be shipped via LTL Freight due to its weight, size, or fragility.
Ships from Winnipeg, MB, Canada Warehouse
