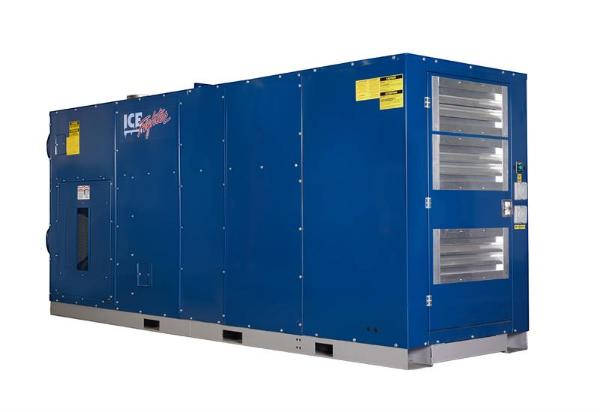

IHS1500-Oil Frost Fighter Indirect Oil Fired Heater 1,500K
IHS1500 Oil/Diesel
- Regular price
-
$38,168.00 - Regular price
-
- Sale price
-
$38,168.00
Specifications
Frost Fighter Indirect High Static Oil Diesel Fired Heater 11,000 CFM 1,500,000 Btu's.
IHS1500H Oil 1,500,000 BTU/h
High efficiency 208/230V 3 Phase
Highest Static in the Industry at 5″
Standard Forklift Pockets & Lifting Hooks for quick & easy movement of heaters
Fully insulated exterior shell – Cool to the Touch, plus enhanced efficiency and temperature rise
Satin Coated Steel + Powder Coated Paint – resists rust and prolongs durability
Durable Stainless Steel Heat Exchanger – increase heater life
Universal Duct Attachment – easily attach either Pin Lock or Belt Cuff Duct styles
Polarity Light Indicator – instant notification of proper power being supplied to the heater
Independent Fan & Blower – ensures better light-offs & combustion control
• two 2-stage burner operations help keep fuel costs in line.
• Proven 'multi-Pass' Stainless Steel Heat Exchanger provides industry-leading heat transfer.
• Fully insulated shell to minimize heat loss and keep the unit cool to the touch for safety.
• Large, powerful fan produces very high CFM and static pressure for long duct runs.

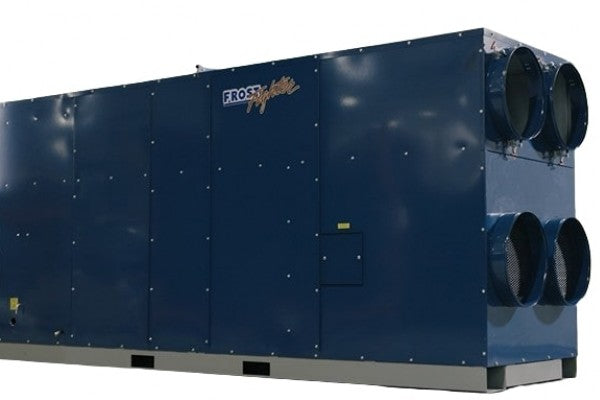

• 2 -20-inch outlets and 2 -20 20-inch air returns on the same side help lower the footprint of the heater on the job site.
• ability to run in continuous ventilation mode.
• minimum of 100 ft of ducting per outlet.
• Durable powder coat finish. (available in custom colors -charges apply)
• Multiple forklift pockets simplify loading and placement of heater.
Specifications
IHS1500 Oil /Diesel
Dual Stage Firing Lo-Fire & Hi-Fire
Capacity - 1,500,000 BTU/h
Outlet Configuration dual 20"
Inlet Configuration dual 20."
Maximum Total Duct Length Up to 100ft per Outlet
Electrical Requirements:
Sold Standard with 208/230V - 3 Phase Electrical
3 Phase 230V/3Ph
Optional Power Configurations
480V/3Ph
575V/3Ph
Air Flow - 11,000 CFM
Outlets - 2 x 20"
Static - 5″
Motor - 5Hp
Shipping Dimensions – 158"L x 44"W x 75"H
Shipping Weight - 3000 lbs.
Download IHS1500 Oil Diesel Manual
This item can only be shipped via LTL Freight due to its weight, size, or fragility.
IHS1500 Oil Ships from Canada- Factory Direct
