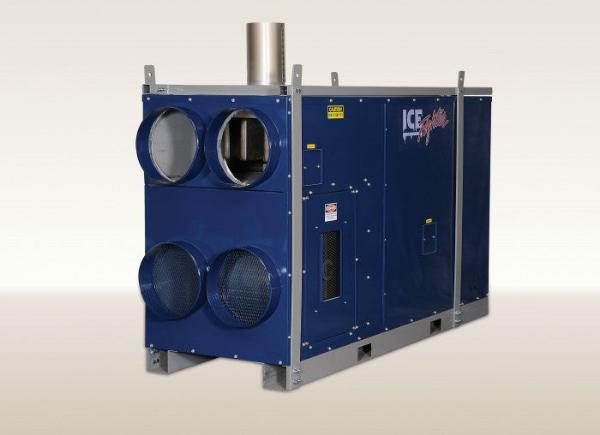

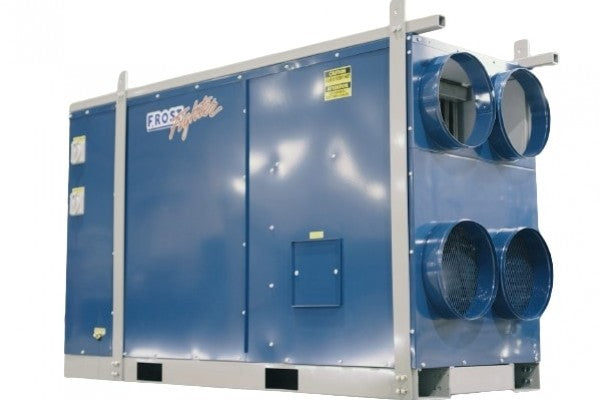

IHS700H-G Frost Fighter Indirect LP NG Heater 8000 CFM 700,000

Frost Fighter Indirect High Static Propane Natural Gas Fired 700,000 Heater With 208/230V HED Dual Phase 8000 CFM 3 Speed Fan Optional 7.5 HP Motor.

IHS700H-LP/NG is now available with an optional 7.5 horsepower motor, making one of the most popular large heaters on the job site even more powerful!

IHS700H will produce over 50% more airflow than the standard IHS700P, supplying up to 8000 CFM vs. 4600 CFM with the standard unit. Maximum static pressure increases to 6.0" w.c.

The IHS700H also features a select able 3-speed fan control, which allows you to customize the airflow and heat delivered to your job site.

The outstanding performance provided by the more powerful motor in conjunction with the fan controller allows the IHS700H to supply higher air volumes and air pressures while retaining all the original performance characteristics of the IHS700 when needed.

The IHS700H will now come standard with a PLC (Programmable Logic Controller), improving reliability and reducing downtime associated with troubleshooting.

The PLC will display real-time operational and error codes, reducing diagnostic time. It will also reduce the need to stock spare parts and associated labor costs.

The IHS700H now has an optional 'Operational Status' high-intensity beacon, which will display the Power and operation Burner Status and Heater down/lockout situation. The IHS700H also features a simplified power selector switch with a soft start on both single and 3-phase power, reducing start-up amperage draw and guaranteeing correct fan rotation, as well as a convenience light in the burner compartment.

The New IHS700H LP/NG Same Performance - Easier Maintenance

Optional HED high efficiency provides Dual Power of 1 Phase 3 Phase

Highest Static in the Industry at 4" (Available on All Models)

Standard Forklift Pockets Lifting Hooks for quick, easy movement of heaters

Satin Coated Steel + Powder Coated Paint – resists rust and prolongs durability

Durable Stainless-Steel Heat Exchanger – increase heater life

Universal Duct Attachment: easily attach either Pin Lock or Belt Cuff Duct styles

Polarity Light Indicator, instant notification of proper power being supplied to the heater.

Independent Fan Blower ensures better light-offs combustion control

81% US Efficiency Rating, 91% European Efficiency Rating

PLC reduces troubleshooting time and simplifies maintenance.

Proven 'multi-Pass' Stainless Steel Heat Exchanger provides industry-leading heat transfer.

Fully insulated shell to minimize heat loss and keep the unit cool to the touch for safety.

LED convenience light in burner compartment for working on the unit at night.

A large, powerful fan produces high CFM and static pressure for long duct runs.

Two 16-inch outlets and two 16-inch air returns on the same side help lower the heater's footprint on the job site.

Ability to run in continuous ventilation mode.

Minimum of 100 ft of ducting per outlet.

An optional operational status beacon allows quick visual indicators of unit status.

The optional burner switch-out kit allows units to run on LP/NG or Oil/Diesel—this must be done at the time of order.

Durable powder coat finish. (available in custom colors -charges apply)

Multiple forklift pockets and lifting bale simplify loading and placement of heater.

Available in 1 and 3 phase 208/230V, as well as three ph460V and 3ph 600V.

CSA Approved

Download IHS700H Brochure

Download IHS700H-G Manual

This item can only be shipped via LTL Freight due to its weight, size, or fragility.

IHS700H LP/NG Ships from Canada - Factory Direct
