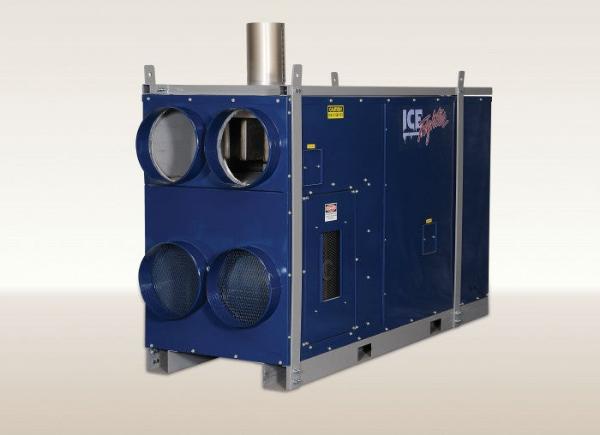

IHS700H-Oil Frost Fighter Indirect Fired Heater 8000 CFM 700,00

Frost Fighter Indirect High Static Oil Diesel Fired Heater With 208/230V HED Dual Phase, 8000 CFM, Optional 7.5 HP Motor, 3 Speed Fan.



IHS700H-Oil is now available with an optional 7.5 horsepower motor, making one of the most popular large heaters on the job site even more powerful!

IHS700H will produce over 50% more airflow than the standard IHS700P, supplying up to 8000 CFM vs. 4600 CFM with the standard unit. Maximum static pressure increases to 6.0" w.c.

The IHS700H also features a select-able 3-speed fan control, which allows you to customize the airflow and heat delivered to your job site.

The outstanding performance provided by the more powerful motor in conjunction with the fan controller allows the IHS700H to supply higher air volumes and air pressures while retaining all the original performance characteristics of the IHS700P when needed.

The IHS700 will now come standard with a PLC (Programmable Logic Controller), improving reliability and reducing downtime associated with troubleshooting.

The PLC will display real-time operational and error codes, reducing diagnostic time. It will also reduce the need to stock spare parts and associated labor costs.

The IHS700 now has an optional 'Operational Status' high-intensity beacon, which will display the Power and operation Burner Status Heater down/lockout situation IHS700P also features a simplified power selector switch with a soft start on both single and 3-phase power reducing start-up amperage draw and guarantees correct fan rotation, as well as a convenience light in the burner compartment.

The New IHS700H Same Performance - Easier Maintenance

Optional HED high efficiency provides Dual Power of 1 Phase & 3 Phase

Highest Static in the Industry at 4" (Available on All Models)

Standard Forklift Pockets & Lifting Hooks for quick & easy movement of heaters

Satin Coated Steel + Powder Coated Paint – resists rust and prolongs durability

Durable Stainless-Steel Heat Exchanger – increase heater life

Universal Duct Attachment: easily attach either Pin Lock or Belt Cuff Duct styles

Polarity Light Indicator, instant notification of proper power being supplied to the heater

Independent Fan & Blower, ensures better light-offs & combustion control

81% US Efficiency Rating, 91% European Efficiency Rating

Specifications: IHS700H Oil/Diesel

Over 80% efficient.

PLC reduces troubleshooting time and simplifies maintenance.

Proven 'multi-Pass' Stainless Steel Heat Exchanger provides industry-leading heat transfer.

Fully insulated shell to minimize heat loss and keep the unit cool to the touch for safety.

LED convenience light in burner compartment for working on the unit at night.

A large, powerful fan produces high CFM and static pressure for long duct runs.

Two 16-inch outlets and two 16-inch air returns on the same side help lower the heater's footprint on the job site.

Ability to run in continuous ventilation mode.

Minimum of 100 ft of ducting per outlet.

The optional built-in 175 USG fuel cell provides up to 35 hours of run time.

An optional operational status beacon allows quick visual indicators of unit status.

Optional burner switch-out kit allows units to run on LP/NG or Oil/Diesel- must be done at the time of order.

Durable powder coat finish. (available in custom colors -charges apply)

Multiple forklift pockets and lifting bale simplify loading and placement of heater.

Available in 1 and 3 phase 208/230V, as well as three ph460V and 3ph 600V.

CSA Approved



Optional fuel Tank for IHS700H – 175 US Gallon



Heating Capacity: 700,000 Btu's

Fuel requirements: Oil/Diesel

Heated air volume: 8,000 CFM

Max Static Pressure: 4"

Max Discharge Temp: 250°F (121°C)

Dimensions:

100"Lx35"Wx59" H

1600lbs w/o tank.

100"Lx35"

Wx88" H

1900 lbs. w/tank

Download IHS700H Brochure

Download IHS700H Oil Diesel Manual
